The below products are specifically tested to EN 1063 BR6 against a 7.62 x 51 calibre weapon, a Rifle. As you can see from the table below there are many comparisons to the NIJ and UL test standards. For more information on the complete range of test standards, including EN1063 please see our technical specifications section.
|
Class Threat Level |
Type of Weapon |
Calibre |
Ammunition |
No of shots |
Velocity (m/s) |
Test Range (m) |
Spacing (mm) |
EN1063 BR6 |
Rifle |
7.62 x 51 |
FJ1/PB/SC |
3 |
830+/- 10 |
10 |
120+/- 10 |
|
NIJ 0108.01 Level III |
Rifle |
7.62 (308 Winchester) FMJ |
FMJ |
5 |
838+/- 15 |
5 |
|
|
UL 752 Level 8 |
Rifle |
7.62 x 51 |
LC/FMJ Military Ball |
5 |
838-922 |
4.6 |

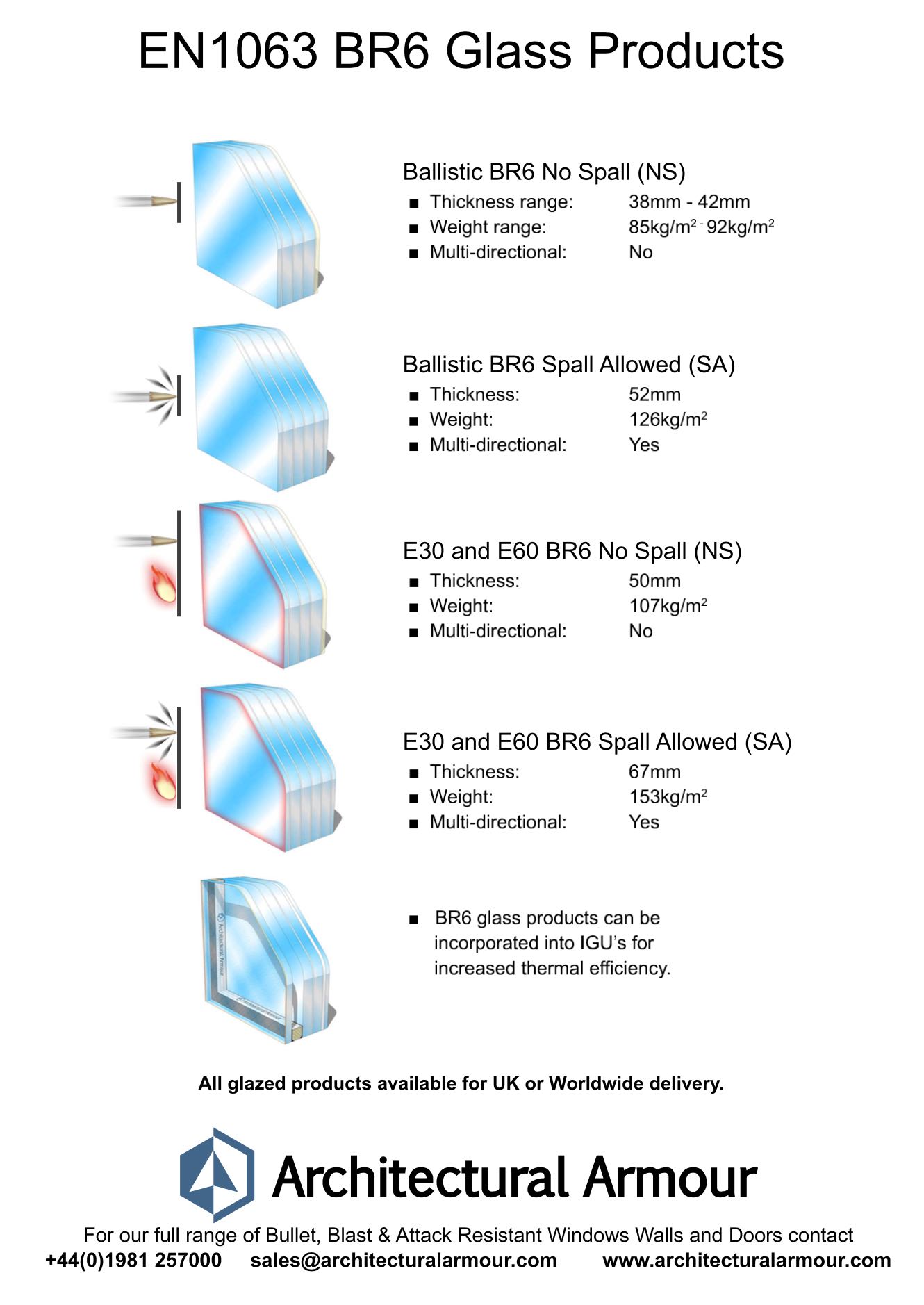

As can be seen from the attachment/image below, EN1063 BR6 Glass is available in 2 spall variants, no spall (NS) and spall allowed (SA),
Both options may be available in fire rated versions dependent on Certifire availability. Alternatively a dual glazed system can be utilised to offer fire rated and bullet resistant properties.
The fire rated variants can be incorporated into our Fire Resistant Windows or Security and Counters to fit your projects needs.
Alternatively if you require EN 1063 BR6 glazing only, this can be incorporated into our Bullet Resistant Windows or Bullet Resistant Doors, allowing a Vision Panel to be included in the design of the door.
We can also offer alternative standards of bullet resistant glazing, which can be found on our Bullet Resistant Glass page.
For more information, prices or to discuss your project in more detail with one of our team members please contact our offices on +44(0) 1981 257000 or email mailto:info@architecturalarmour.com
Using experience on previous projects and customers requirements we have designed a split height transaction window offering standing and DDA access to reception and data centre environments.
For more information and pricing please contact our office on info@architecturalarmour.com or +44(0)1981 257000
Read more
We have increased our range of stock transaction windows to six units , ready for express dispatch.
Our range of transaction windows include, physical attack resistant and bullet resistant internal and external models. Please see below an outline of our products.
Architectural Armour are offering standard stock items and bespoke orders to suit. Please contact us on +44(0) 1981 257000
