Cash Transfer (Electric)

Bulk- Large Item Transfer

Architectural Armour can offer our standard Electric BTU for the safe transfer of Cash In Transfer and larger items between the secure and non secure areas of a work environment.  Secure Transfer Units are an essential part of any security system and with the interlocked doors make transaction quick and easy whilst maintaining operational security; the addition of indicator lights allows staff to manage cash transfer easier.

The Electric Bulk Transfer Unit can also be supplied with our without adjustable legs.  The legs allow for the unit to be freestanding and adjusted to the correct operating height dependent on the scenario.

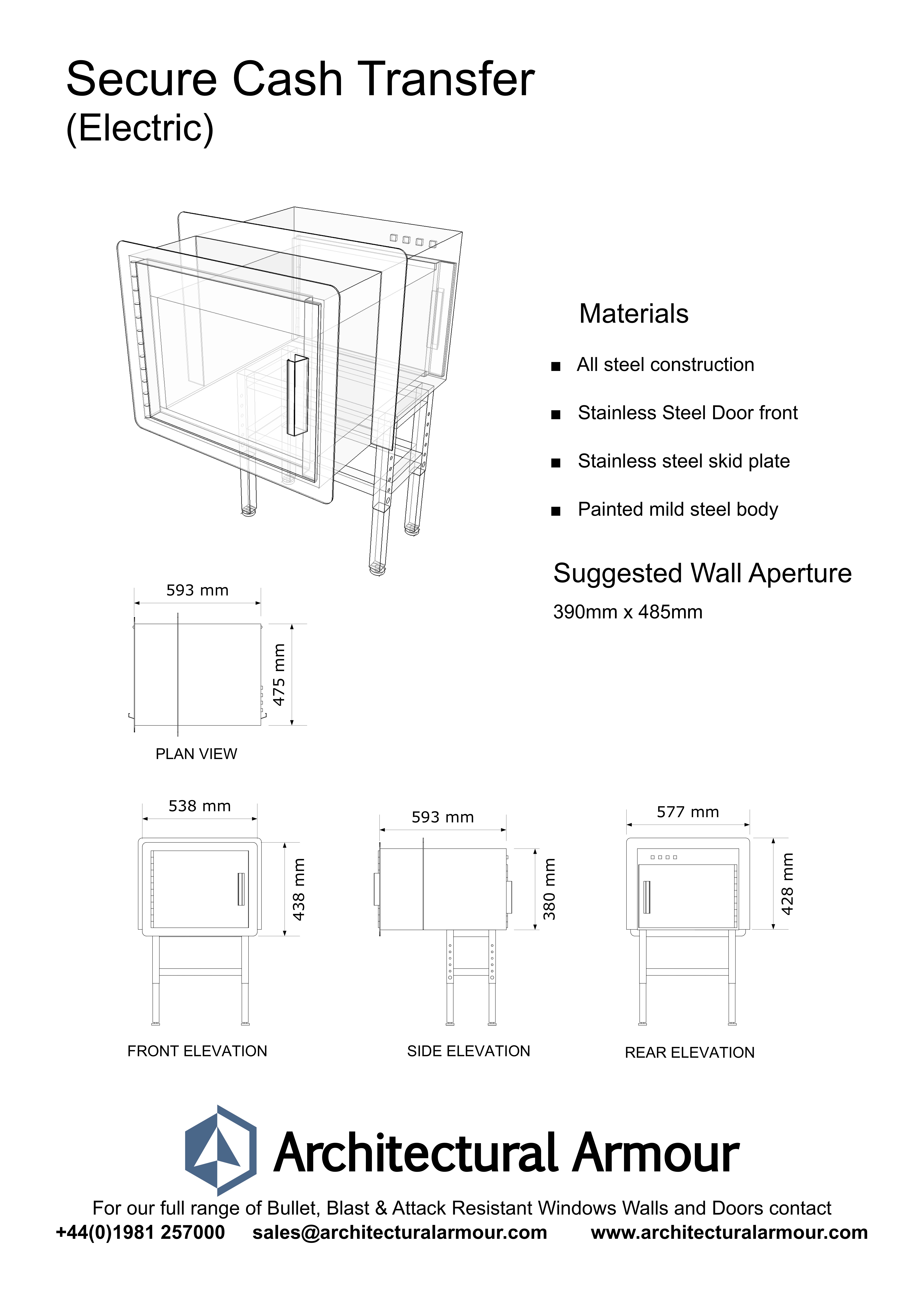

Alternatively the unit can be installed into a wall, below a working counter.  In this situation the legs are not required and a wall aperture of 390mm x 485mm is recommended.

When installed into cash offices it is often paired with security screens and counters or our Cash Transaction Windows to give staff vision to the secure side, as well as additional serving space.

Available in right handed and left handed versions the BTU is ideally manufactured to suit all customers needs.

The standard unit has internal dimensions of 275mm x 390mm wide.  A depth of 510mm allows transfer of bulkier items.

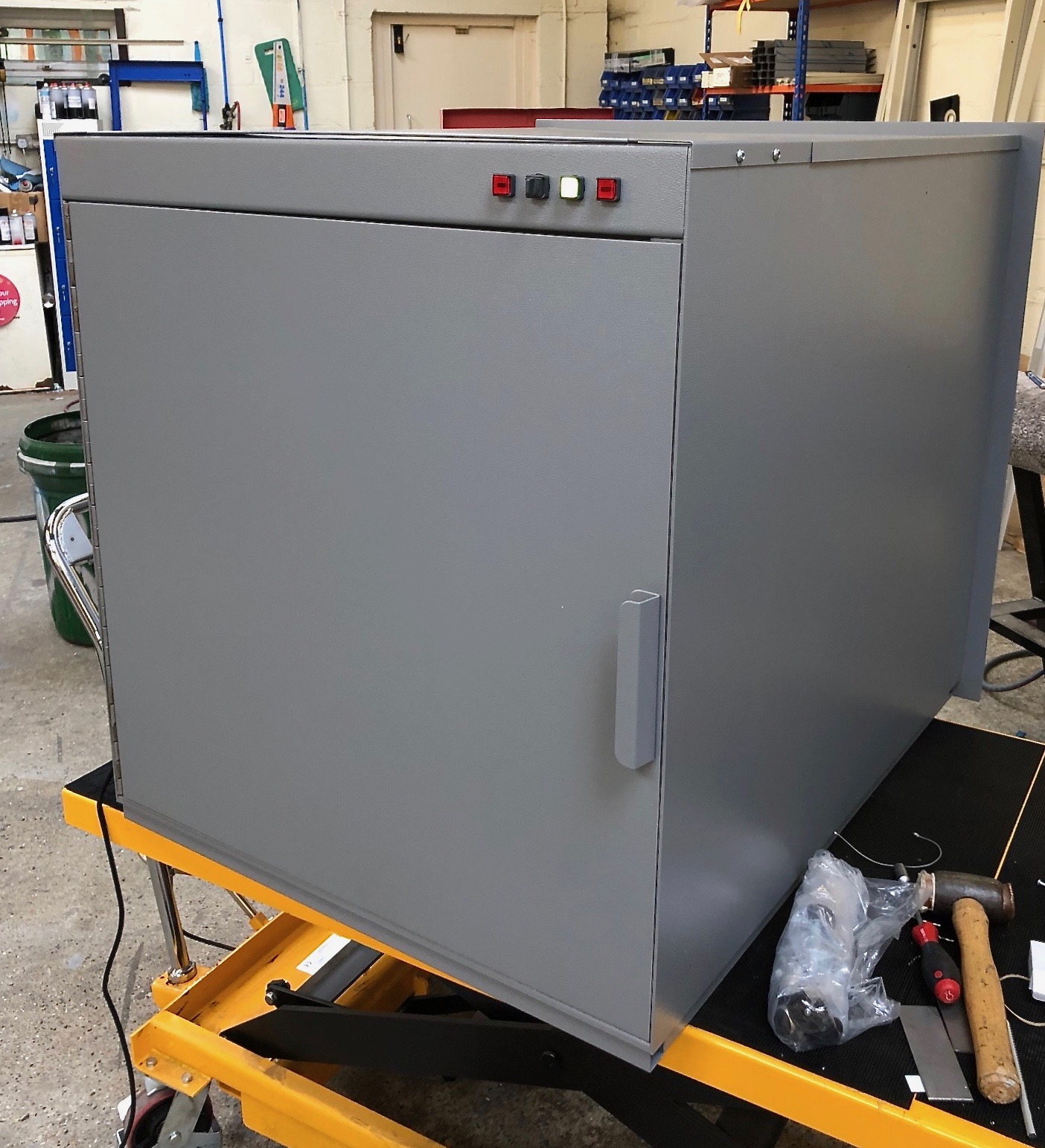

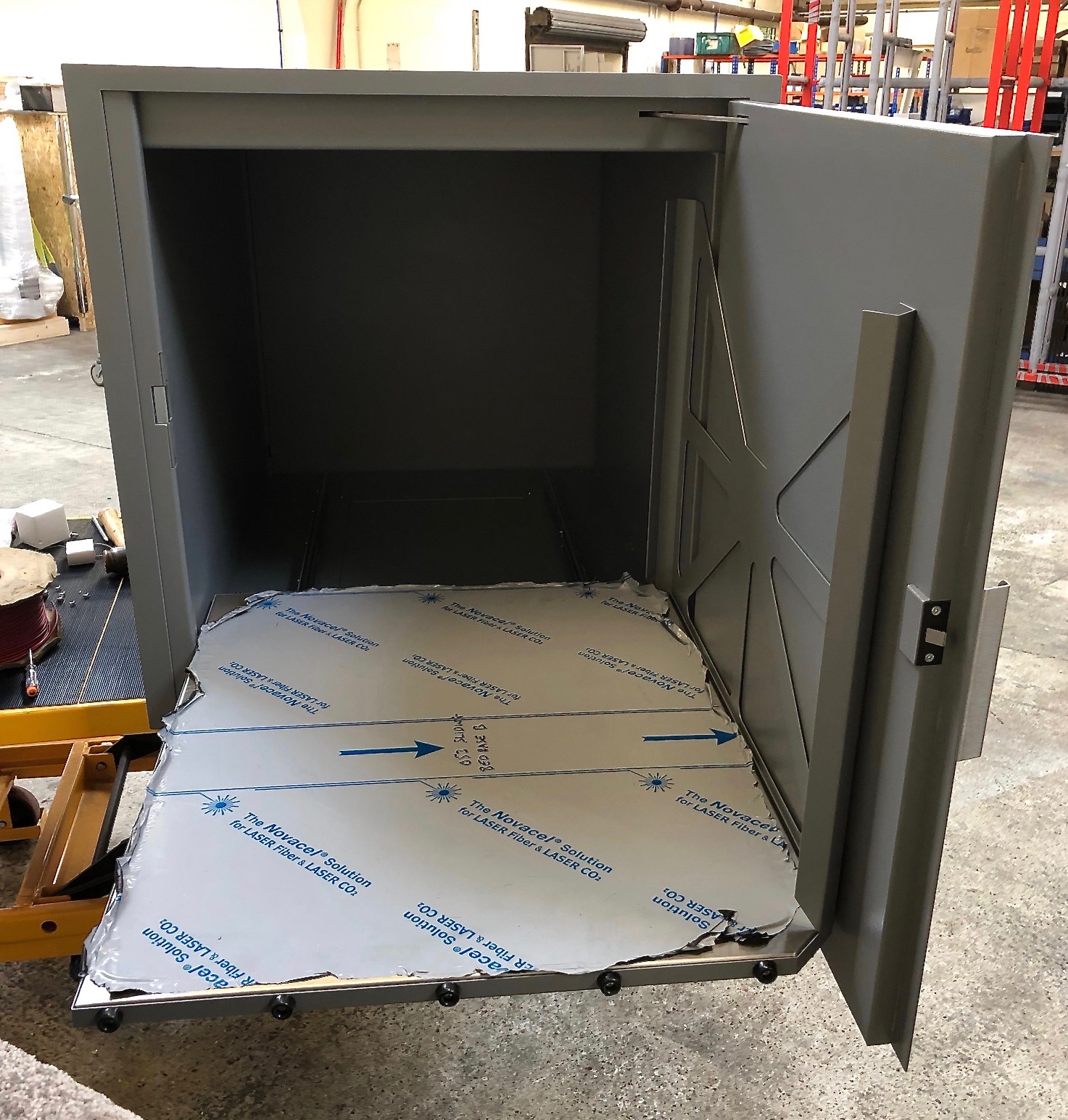

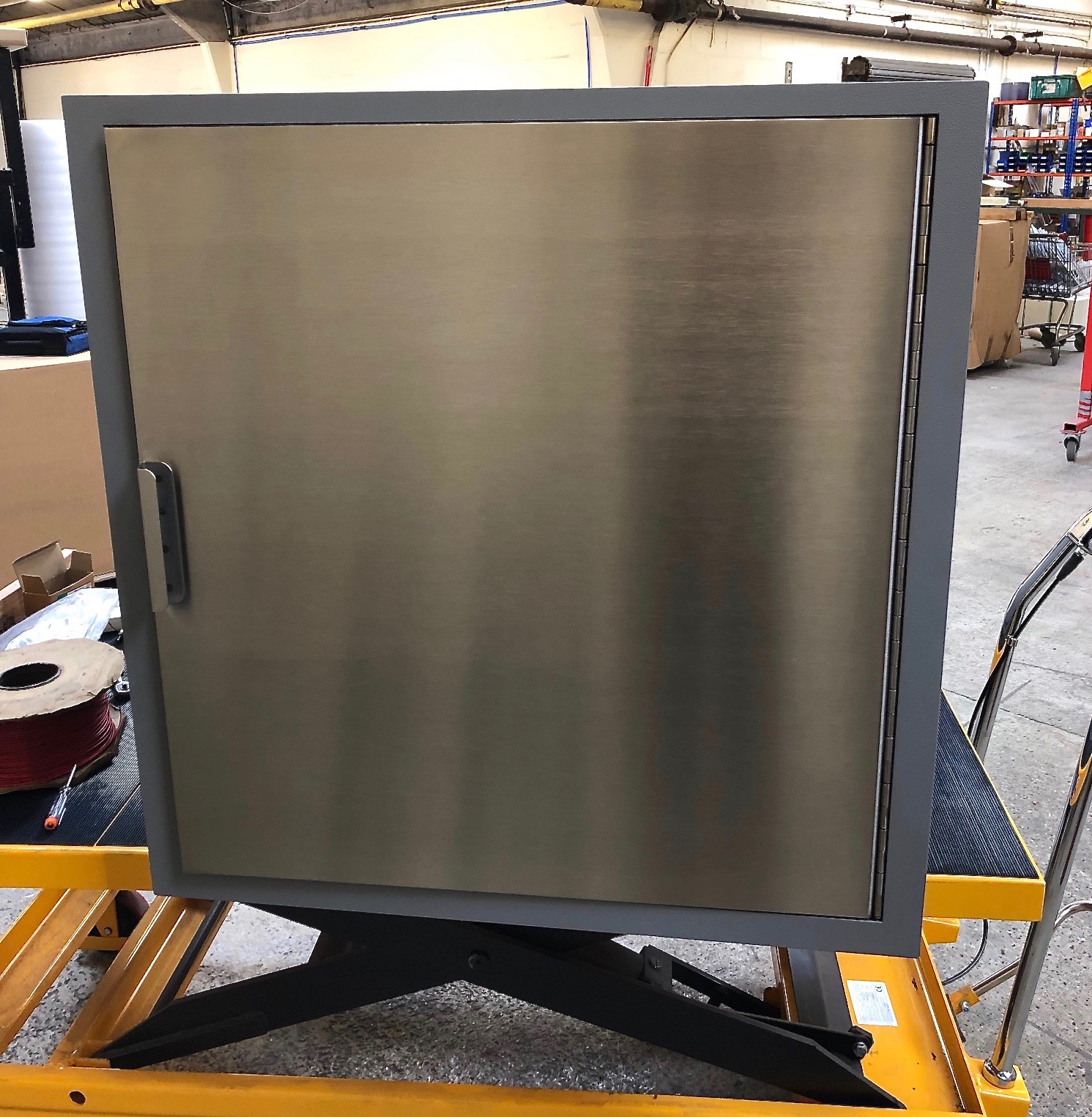

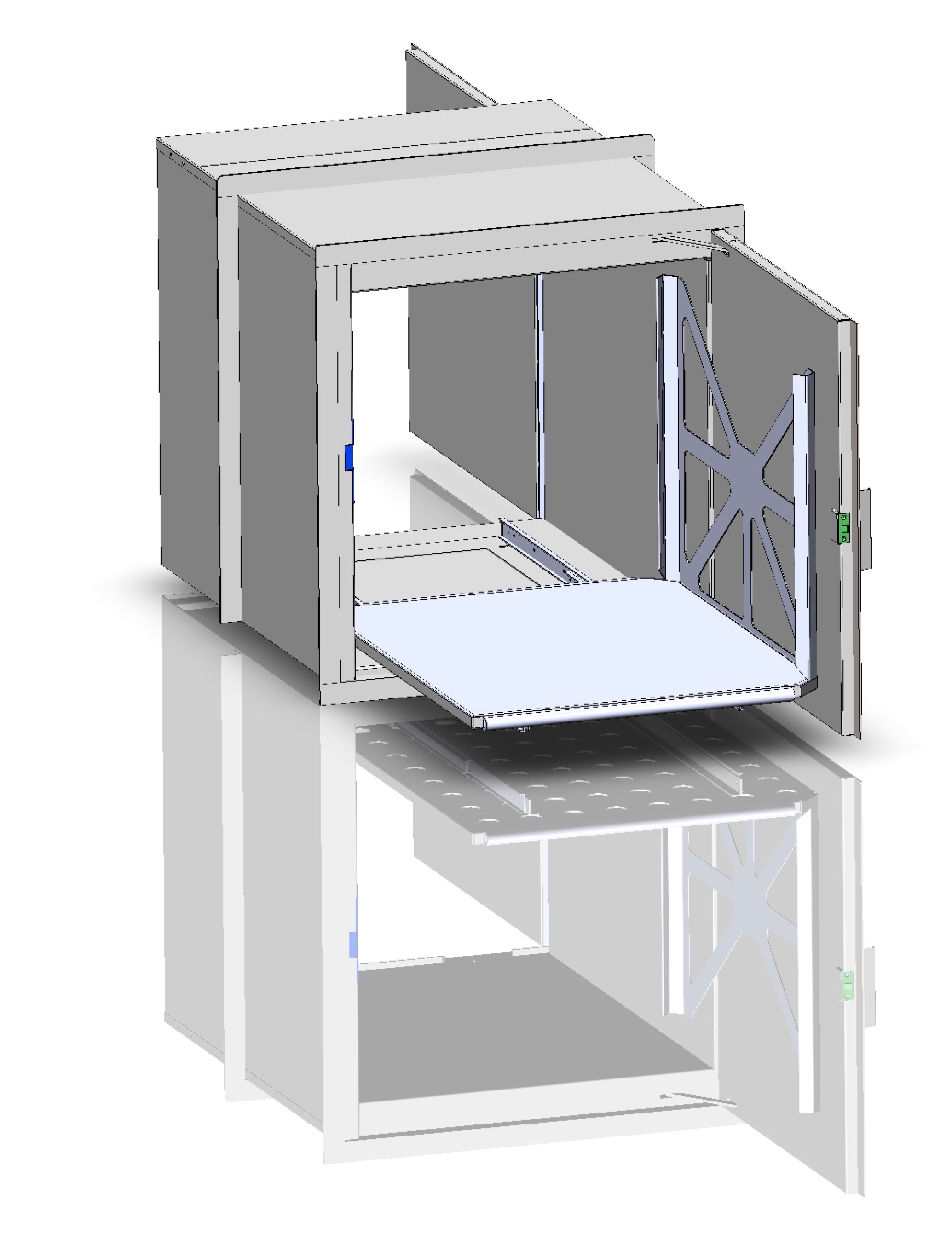

If this unit is not feasible for your application we are able to manufacture bespoke units to suit your requirements.  Please see below images of a large unit we manufactured bespoke for a recent customer in the jewellery industry.

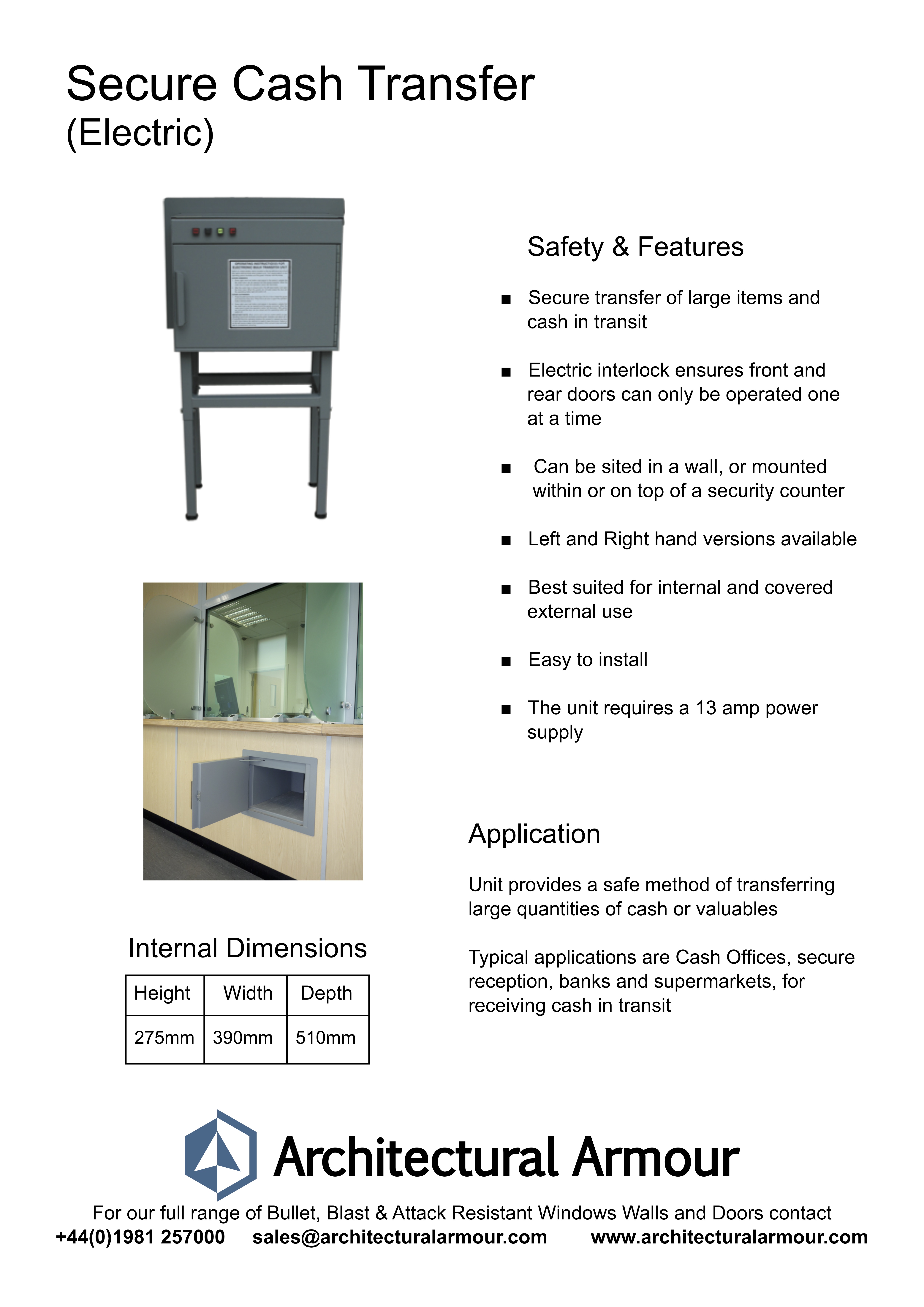

For more information on the product please review the data sheets below or contact our offices on +44(0) 1981 257000 or mailto:info@architecturalarmour.com



      bespoke Cash Transfer Unit                          bespoke secure cash transfer unit jpg

             bespoke secure cash transfer unit jpg                      Secure Cash Transfer bespoke



electric btu

Other Products which maybe of interest

Stock items

Bullet Resistant Transaction Window                Exterior/Interior Bullet Resistant Window with Electronic Speech, Ticket Window

Attack Resistant Transaction Windows            2 types of versatile Physical Attack Ticket/Cashiers windows with Natural Speech Path for internal use

Night Pay Window / Hatch                                      A flat fronted Transaction Window.  Opening drawer, typical uses Petrol Stations/Pharmacies

Cash Scoops and Trays                                              A range of Cash and Document Transaction Trays and Scoops

Bullet Resistant Door Viewer                                A full range of bulletproof / Resistant Door Viewers / Peepholes / Spyholes BR4 to BR6

 All of the above can also be manufactured in bespoke size

Bespoke items

Security Counters and Screens                   Physical, Ballistic or Blast Resistant Counters for any application to keep staff secure

Bullet Resistant Windows                              A range of ballistic rated windows manufactured to quality standard ISO 9001.

Blast Windows                                                     Blast windows to protect against terrorist attacks and longer petrochemical explosions

Attack/Intruder Resistant Windows       EN356 rated attack resistant windows protecting against planned or surprise attacks.

Fire Resistant Windows                                  Available as fire rated only or combined with our bullet, attack or blast windows.

Bullet Resistant Doors                                    A range of fully tested and certified ballistic single and double doors.

Blast Resistant Doors                                     Steel manufactured doors offering blast protection to buildings

Attack/Intruder Resistant Doors              LPS1175 rated doors for multi-purposes.  Manufactured bespoke to customers requirements.

Security Fire Doors                                          A combination of fire protection and security rated doors made to measure.

Ballistic Technical Specifications

EN 1063               Glass in Building - Security Glazing - Testing and Classification of Resistance Against Bullet Attack

UL 752                   Standard for Bullet-Resisting Equipment

BS 5051                Bullet-resistant glazing - Part 1:  for interior use- Part 2: for Exterior use

NIJ 0108.01      US National Institute of Justice Standard-Test and Certification for Ballistic Resistant Materials

EN 1522/3          Windows, doors, shutters and blinds - Bullet resistance - Requirements and classification /Test method

Blast Specifications

GSA-TS01:2003     Standard Test Method for Glazing and Window Systems Subject to Dynamic Overpressure Loadings

EN 13541                   Glass in building - Security glazing - Testing and classification of resistance against explosion pressure

EN 13123-2               Windows, doors and shutters - Explosion resistance - Requirements and classification

ISO 16933:2007  Glass in Building -- Explosion-Resistant Security Glazing -- Test & Classification for Arena Air-Blast Loading

Fire Specifications

UL 10C           Positive Fire Pressure Tests of Door Assemblies

EN 1363-1    Fire resistance tests –Part 1: General Requirements

EN 1364-1     Fire resistance tests for non-load-bearing elements – Part 1: Walls

BS 476 Part 22     Fire tests on building materials and structures

EN 1634-1   Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware

Manual Attack  Specifications

EN 1627   Pedestrian door-sets, windows, curtain walling, grilles and shutters - Burglar resistance - Requirements and classification

LPS 1270   Intruder Resistant Security Glazing -  Requirements & Testing Procedures

EN 356         Glass in building - Security glazing - Testing and classification of resistance against manual attack.

LPS 1175 and 1270 Tool Categories   Testing procedures for the LPCB approval

This is an extract not a full report and Architectural Armour Ltd accepts no liability for any loss, direct, indirect or consequential damage incurred by using this information, to the fullest extent permitted by law. You should make your own judgement as regards use of this document and seek out the full test standards.
