EN 1063 BR3 Bullet Resistant Glass
The below products are specifically tested to EN 1063 BR3 against a .357 calibre handgun weapon, a Magnum. As you can see from the table below there are many comparisons to the NIJ and UL test standards. For more information on the complete range of test standards, including EN1063 please see our technical specifications section.
|
|
Class Threat Level |
Type of Weapon |
Calibre |
Ammunition |
No of shots |
Velocity (m/s) |
Test Range (m) |
Spacing (mm) |
|
|
EN1063 BR3 |
Handgun |
.357 Magnum |
FJ1/CB/SC |
3 |
430+/- 10 |
5 |
120+/- 10 |
|
|
NIJ 0108.01 Level II-A, and II |
Handgun |
.357 Magnum JSP |
JSP |
5 |
381+/-15 425+/- 15
|
5 |
N/A |
|
|
UL 752 Level 2 |
Handgun |
.357 Magnum |
JSP |
3 |
381-419 |
4.6 |
N/A |

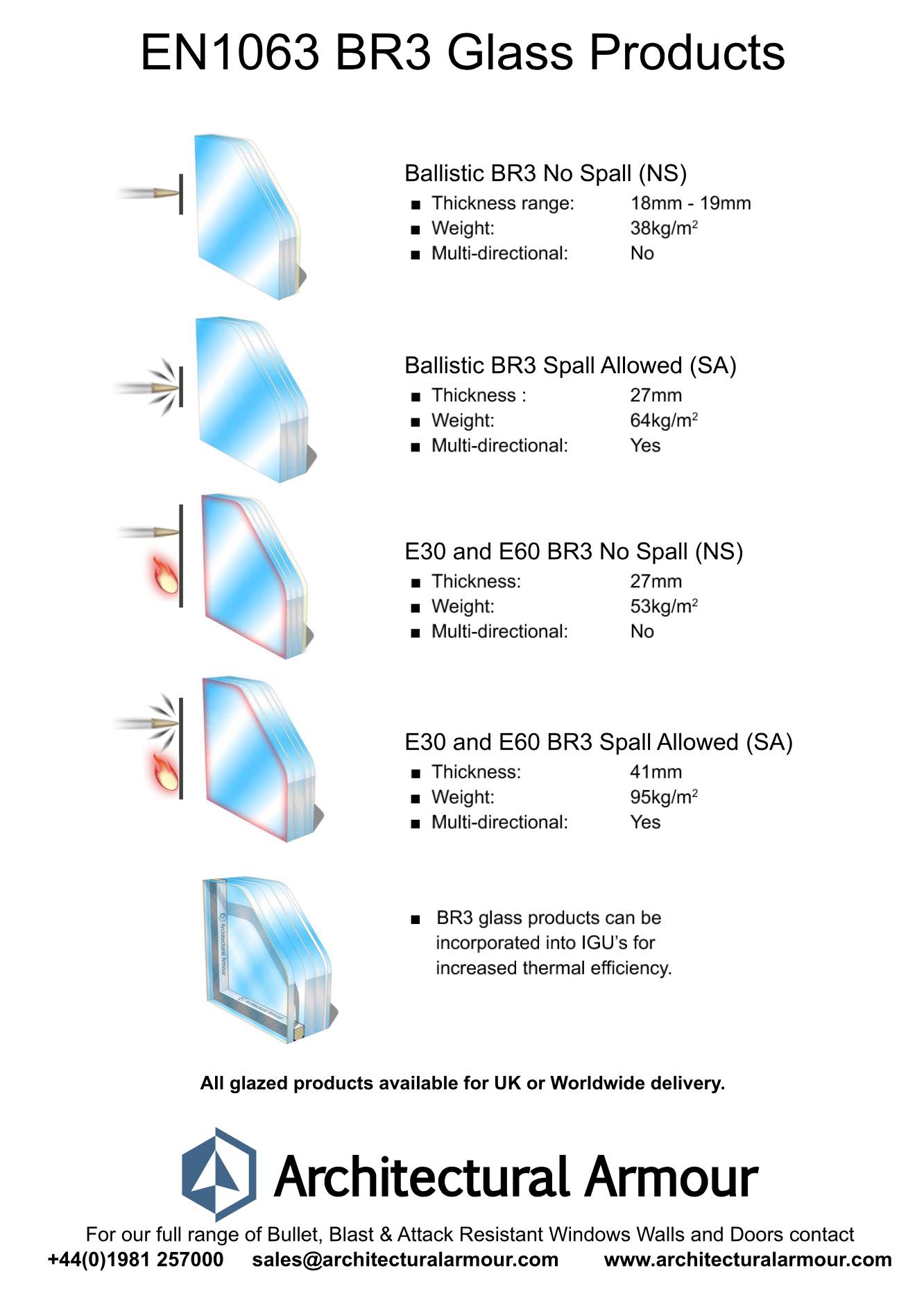

As can be seen from the attachment/image below, EN1063 BR3 Glass is available in 2 spall variants, no spall (NS) and spall allowed (SA)
Both options may be available in a fire rated versions; dependent on availability of Certifire. Alternatively dual glazed systems can be utilised to offer fire rated and bullet resistant solutions.
If you require EN 1063 BR3 glazing only, this can be incorporated into our Bullet Resistant Windows or Bullet Resistant Doors, allowing a Vision Panel to be included in the design of the door.
We can also offer alternative standards of bullet resistant glazing, which can be found on our Bullet Resistant Glass page.
For more information, prices or to discuss your project in more detail with one of our team members please contact our offices on +44(0) 1981 257000 or email mailto:info@architecturalarmour.com
