Attack Resistant Transaction Windows



Ticket Transaction Window SW1 P6B         Ticket Transaction Window

Architectural Armour manufacture and hold stock of 2 versions of physical attack resistant cashier's windows.  Primarily designed for internal use these versatile security  windows offer a cost effective way of transacting with the public while maintaining the safety of the staff.  The primary difference between the SW1 and SW2 is the size and capacity of the transaction tray, the SW1 is fitted with a shallow cash and document tray whilst the SW2 has a combination tray which can be used to pass larger items.

Transaction Window Model SW1                                     SW1 Data Sheet

  1. Glazing           EN356 P6B Laminated attack resistant glass
  2. Size                   600mm wide x 952mm high x 520mm deep
  3. Frame              Manufactured from mild steel
  4. Colour            Polyester powder coated RAL 7035 Light Grey
  5. Base                 Stainless steel counter over mild steel base
  6. Trays                Cash and Document Tray
  7. Capacity        320mm wide x 24mm deep Documents to A3
  8. Speech            Natural speech transfer through mullions

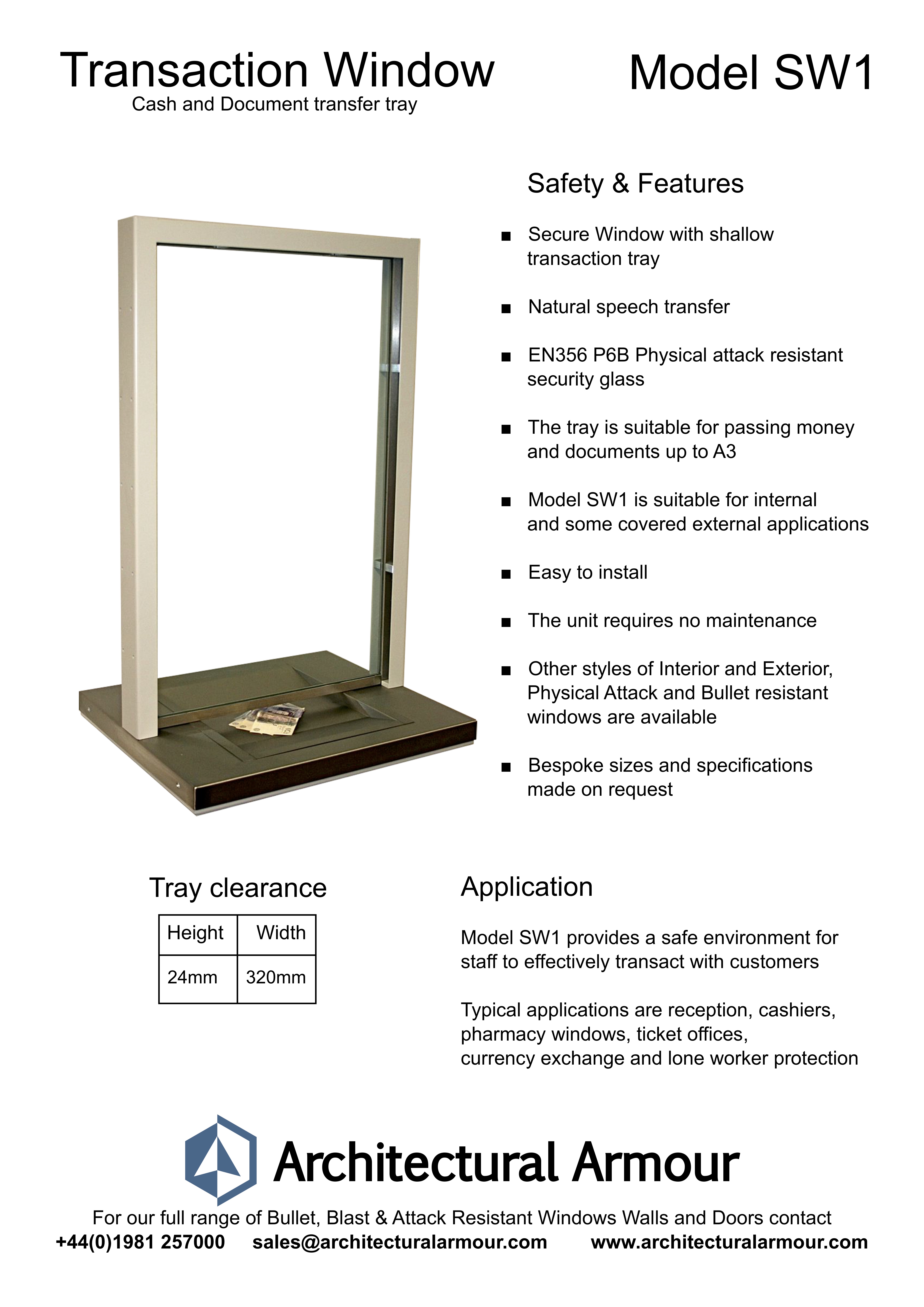

  9.       Ticket Cash Transaction Window SW1 Overview

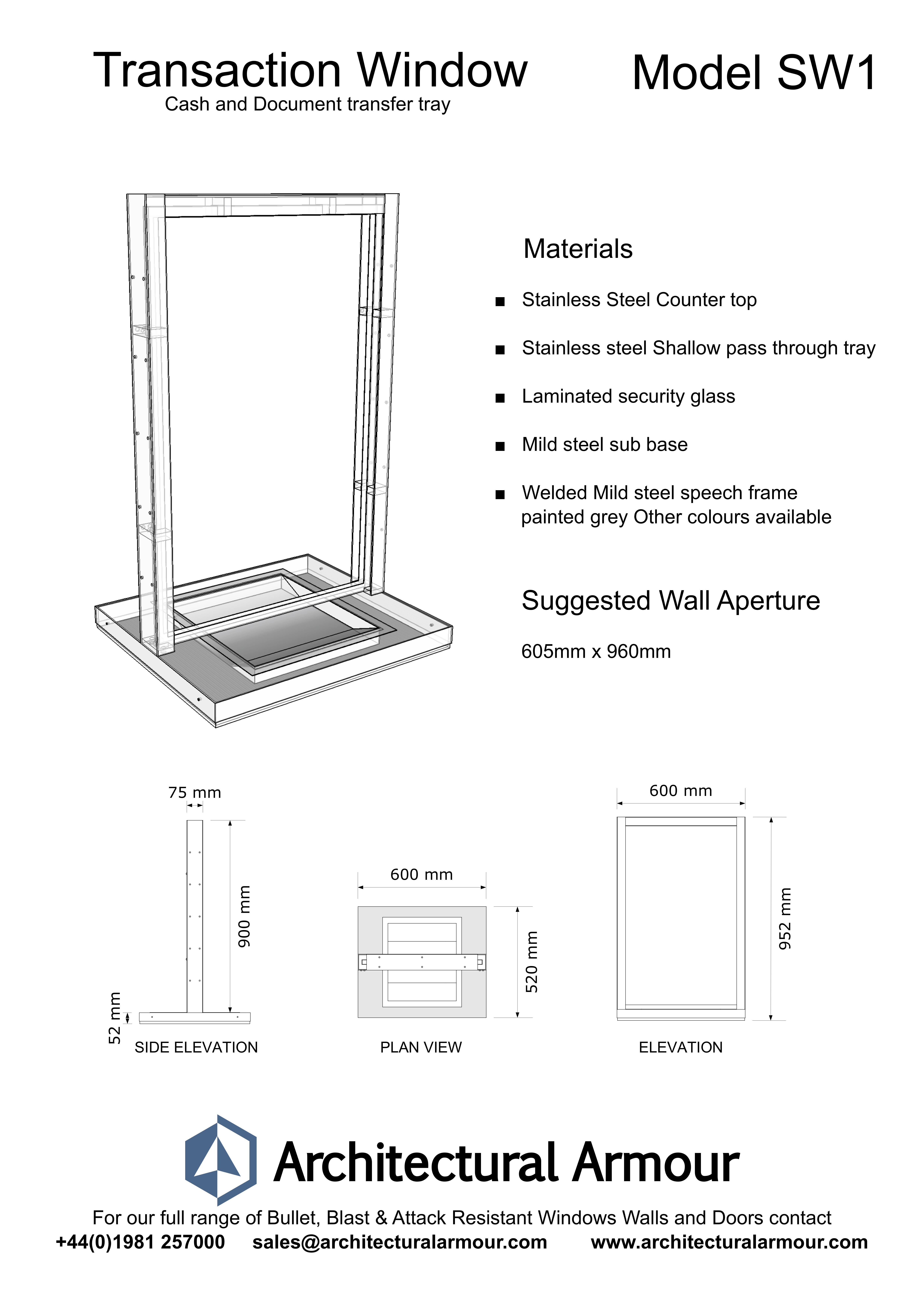

      Ticket Transaction Window SW1 Dimensions

Transaction Window Model SW2                                   SW2 Data Sheet

  • Glazing            EN356 P6B Laminated attack resistant glass
  • Size                    600mm wide x 1052mm high x 520mm deep
  • Frame               Manufactured from mild steel
  • Colour              Polyester powder coated RAL 7035 Light Grey
  • Base                  Stainless steel counter top over mild steel base
  • Trays                 Combination Tray, with sliding lid
  • Capacity         Above 320mm wide x 24mm deep Documents to A3
  • Capacity         Lower Section for larger items
  • Speech             Natural speech transfer through mullions
  •

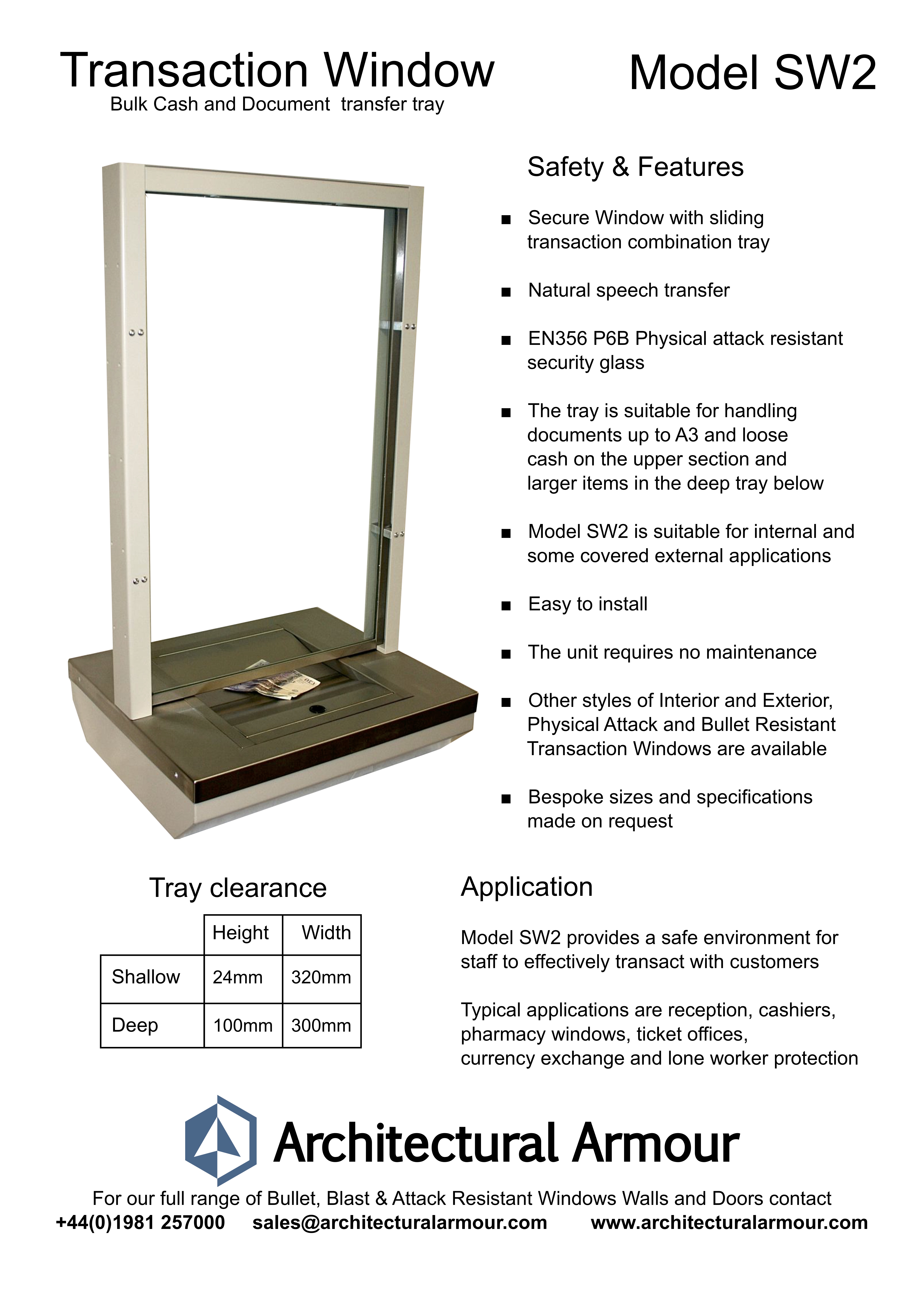

    Ticket Cash Transaction Window SW2 Overview

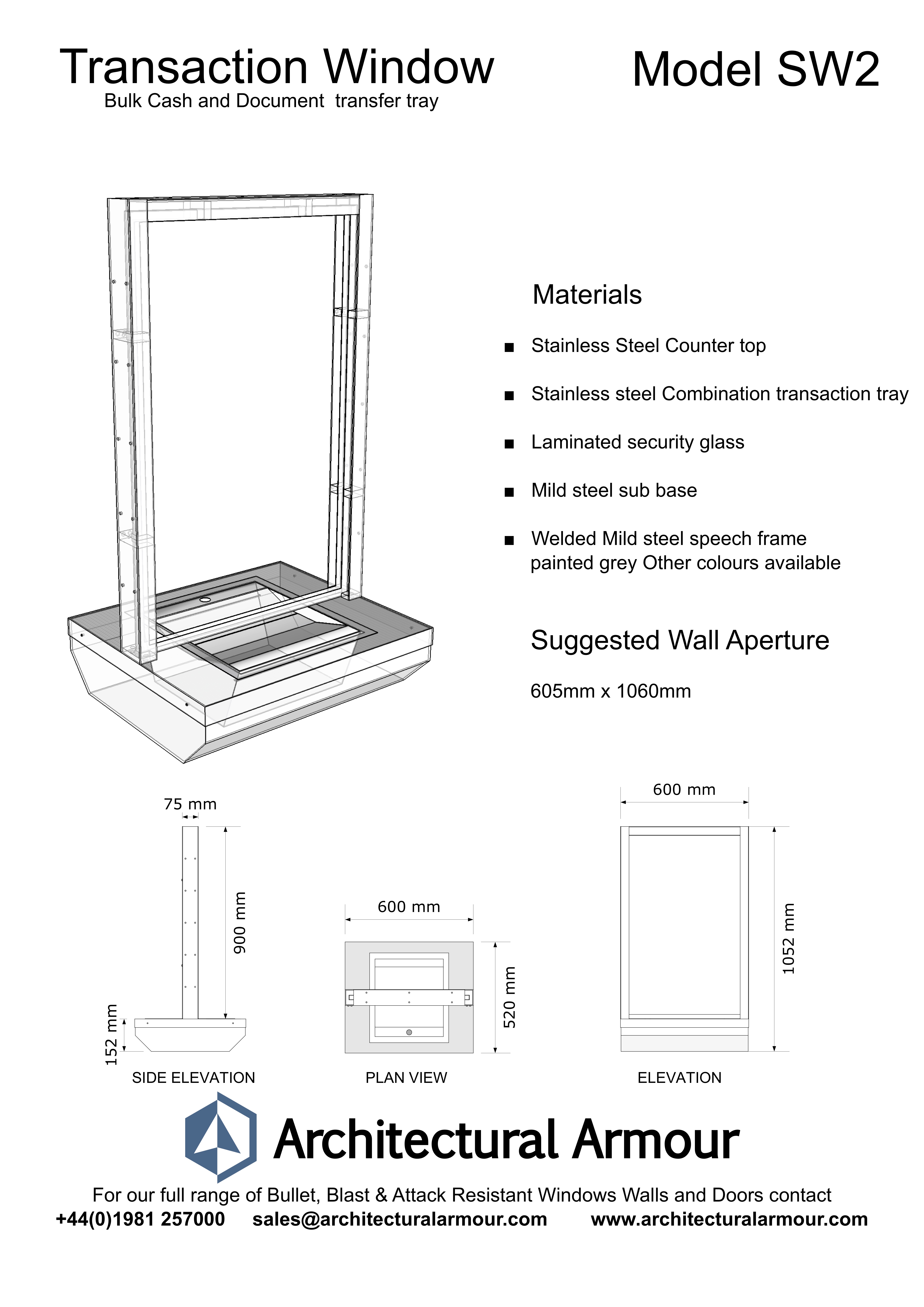

     Transaction Pay Window SW2 Dimensions

Cashier Windows

Cashiers Windows are designed to offer protection by separating the public from the secure area whilst allowing the staff to easily transact with customers in an efficient manner.  Whether bullet or physical attack resistant Architectural Armour can accommodate your security needs.  Our transaction windows are often installed with our Electric BTU to enable to transfer of small and large items without compromising security.

For External applications we have the  Bullet Resistant Transaction Window (BSW) fitted with a deep pass through tray c/w lockable sliding lid.  For the transfer of larger items we have the Night Pay Window, like the External ticket Window it is constructed of stainless steel and incorporates electronic speech transfer.

Typical applications for these models are reception areas, pharmacy windows, ticket offices or currency exchange bureaus, car parks and many more.  With so many applications they are known by a variety of alternate names, such as Cash Windows, Pass Through Hatches, Ticket Windows, Pay Out windows, Bank Windows the list goes on. Architectural Armour's management have supplied products for all of these applications, many requiring bespoke solutions.

Architectural Armour Ltd can offer bespoke Physical Attack or Bullet Resistant Cashier Windows and/or Cashier Screens to customer's own specification.  We can also supply a range of ballistic windows to withstand bullets from most calibre's of weapon.  As these are more specialist items please contact us to discuss your requirements.

Please call us on +44 (0) 1981 257000 or mailto:info@architecturalarmour.com  to speak to one of our team.

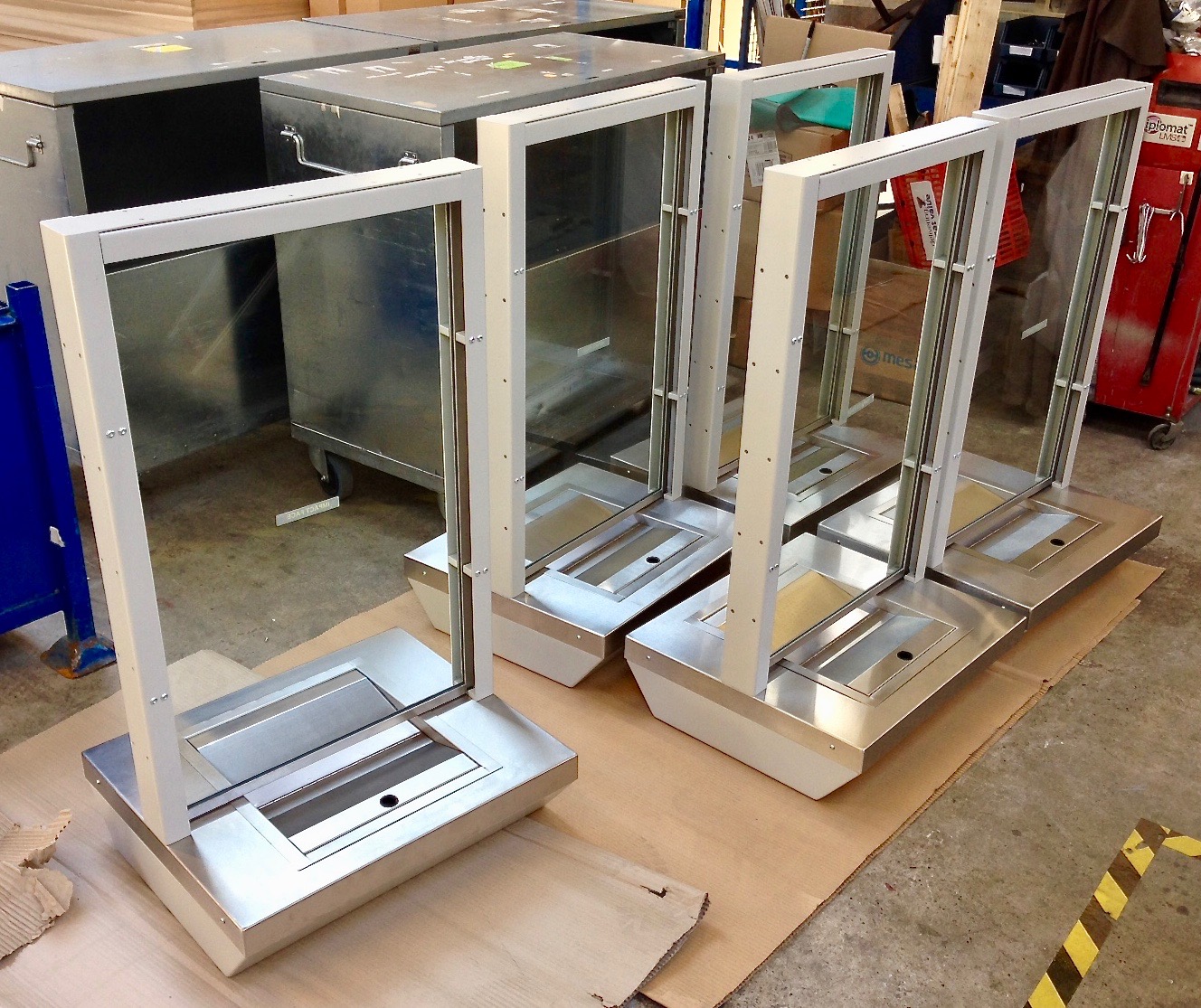

          Attack Resistant Transaction Windows

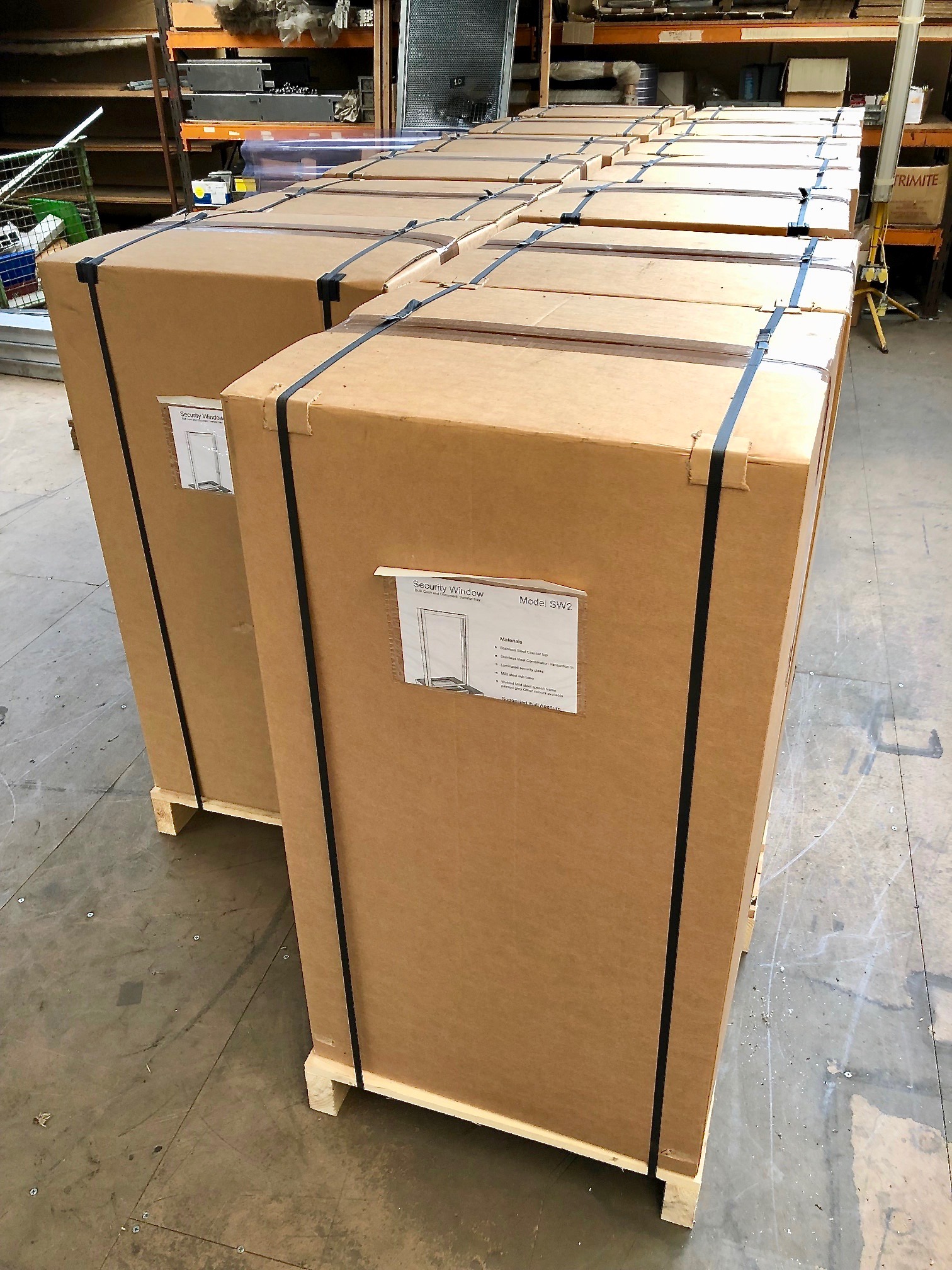

              Transaction Windows Awaiting Despatch



A selection of our standard stocked items are displayed, but if you cannot find what you require here you may wish to view our selection of Cash Scoops and Trays , all of which can be incorporated into a security window of your design and specification.

Architectural Armour offer a range of attack resistant products to different standards, please click the relevant link below to find out more;

Other Transaction Windows available are

Bullet Resistant Transaction Window                Exterior/Interior Bullet Resistant Window with Electronic Speech, Ticket Window

Night Pay Window / Hatch                                     A flat fronted Transaction Window.  Opening drawer, typical uses Petrol Stations/Pharmacies

BR6 Guard House Transaction Window            BR6 flat fronted Ballistic Window with opening drawer for document transfer.

Other Attack Resistant Products

Attack Resistant Glass                                   Manual Attack resistant glass.  Certified to EN356 or LPS 1270

Security Counters and Screens                  Physical, Ballistic or Blast Resistant Counters for any application to keep staff secure

Attack/Intruder Resistant Windows       EN356 rated attack resistant windows protecting against planned or surprise attacks.

Attack/Intruder Resistant Doors              LPS1175 rated doors for multi-purposes.  Manufactured bespoke to customers requirements.

Manual Attack  Specifications

EN 1627   Pedestrian door-sets, windows, curtain walling, grilles and shutters - Burglar resistance - Requirements and classification

LPS 1270   Intruder Resistant Security Glazing -  Requirements & Testing Procedures

LPS 1175 Requirements and testing procedures for the LPCB certification and listing of intruder resistant building components, strongpoints, security enclosures and free-standing barriers

EN 356         Glass in building - Security glazing - Testing and classification of resistance against manual attack.

LPS 1175 and 1270 Tool Categories   Testing procedures for the LPCB approval
