Fire Rated Transaction Trays

Architectural Armour  offer a number of fire rated transaction trays and drawers for inclusion into fire resistant counter and screen assemblies.

 In counter trays are available from stock with either EI30 or EI60 and also have ballistic rating to EN 1522/3 FB4.

Front opening drawers offer EI90 fire resistance and can be either be for physical attack or ballistic rated to EN1522/3 FB4-FB6.

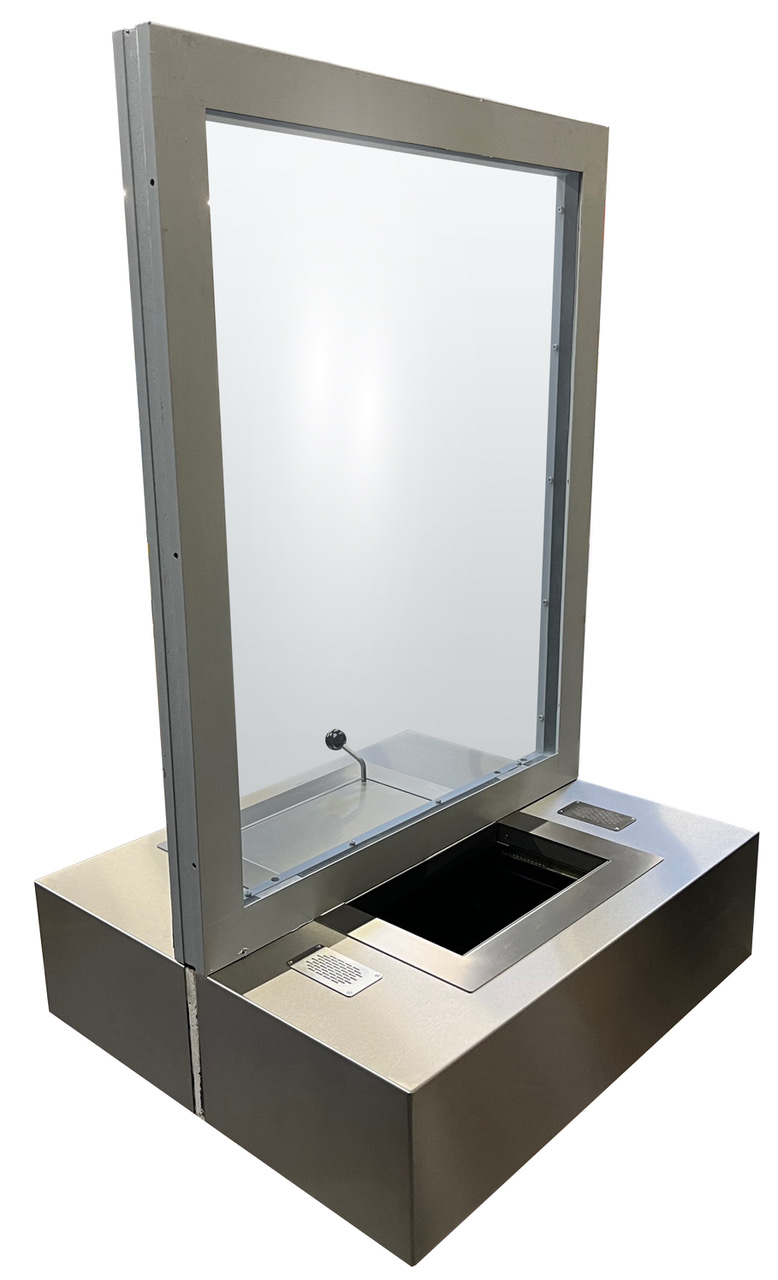

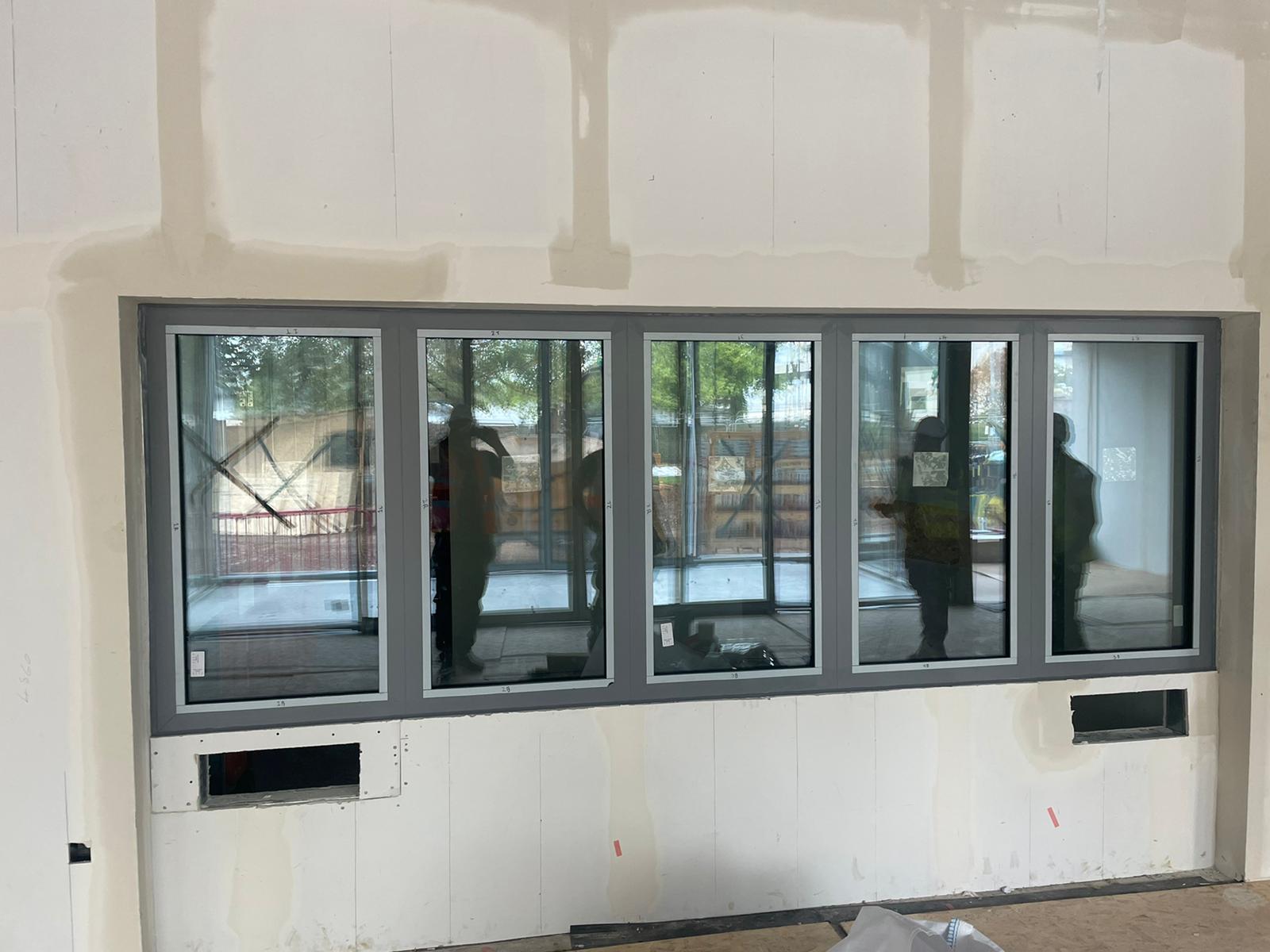

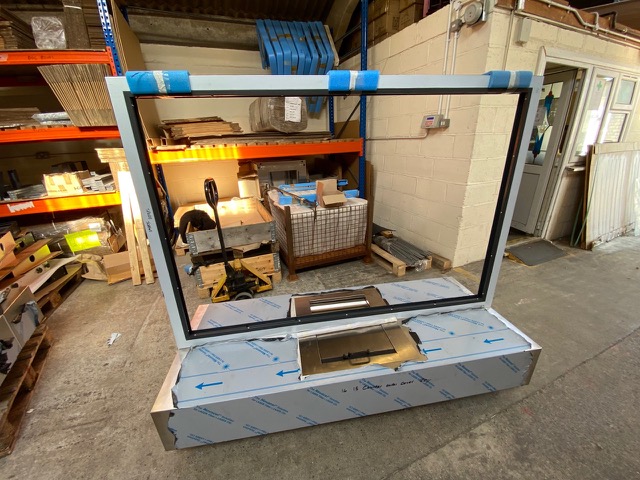

Whilst we are happy to sell trays alone we often incorporate  both  the in the counter options and front opening drawers within screen assemblies..  Please see below a couple of images from projects we have been either manufactured or supplied.

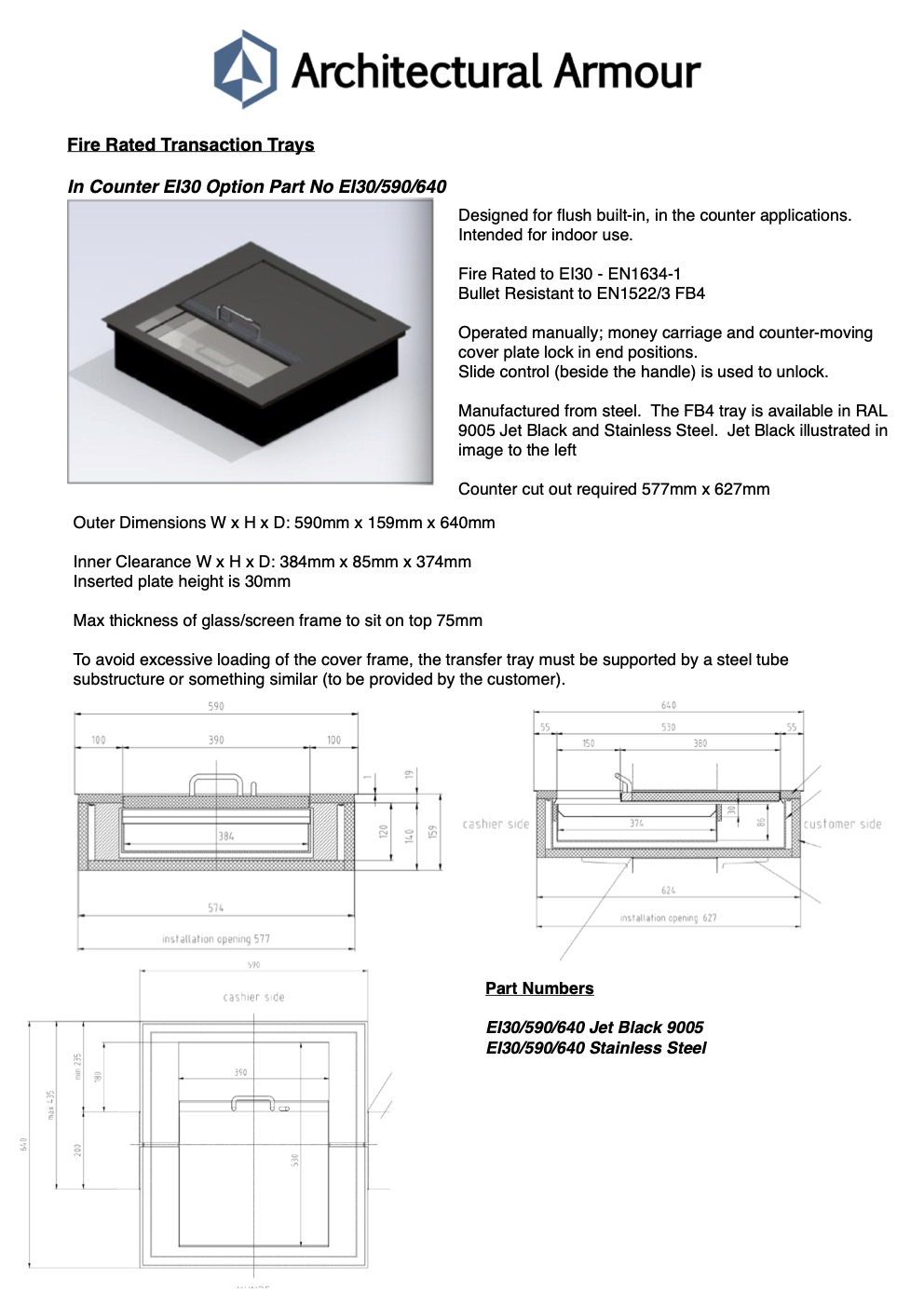

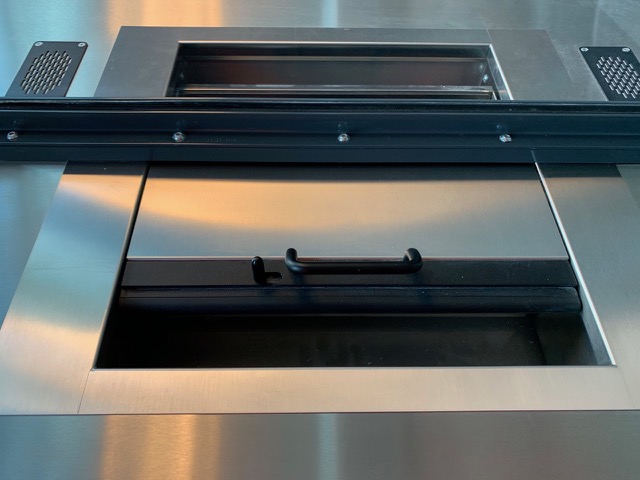

 Fire Rated Tray - EI30 In the Counter Transaction Tray

 In Stock - Ready for immediate delivery
  1. Please contact us on +44(0) 1981 257000 or mailto:info@architecturalarmour.com to discuss your project in more detail.

 Designed for flush built-in, in the counter applications. Intended for indoor use.

Fire Rated to EI30 - EN1634-1 Bullet Resistant to EN1522/3 FB4

Operated manually; money carriage and counter-moving cover plate lock in end positions.
Slide control (beside the handle) is used to unlock.

Manufactured from steel. The FB4 tray is available in RAL 9005 Jet Black and Stainless Steel.

Outer Dimensions W x H x D: 590mm x 159mm x 640mm

Inner Clearance W x H x D: 384mm x 85mm x 374mm Inserted plate height is 30mm

Max thickness of glass/screen frame to sit on top 200mm

To avoid excessive loading of the cover frame, the transfer tray must be supported by a steel tube substructure or something similar (to be provided by the customer).

Part Numbers;

EI30/590/640 Jet Black 9005

EI30/590/640 Stainless Steel

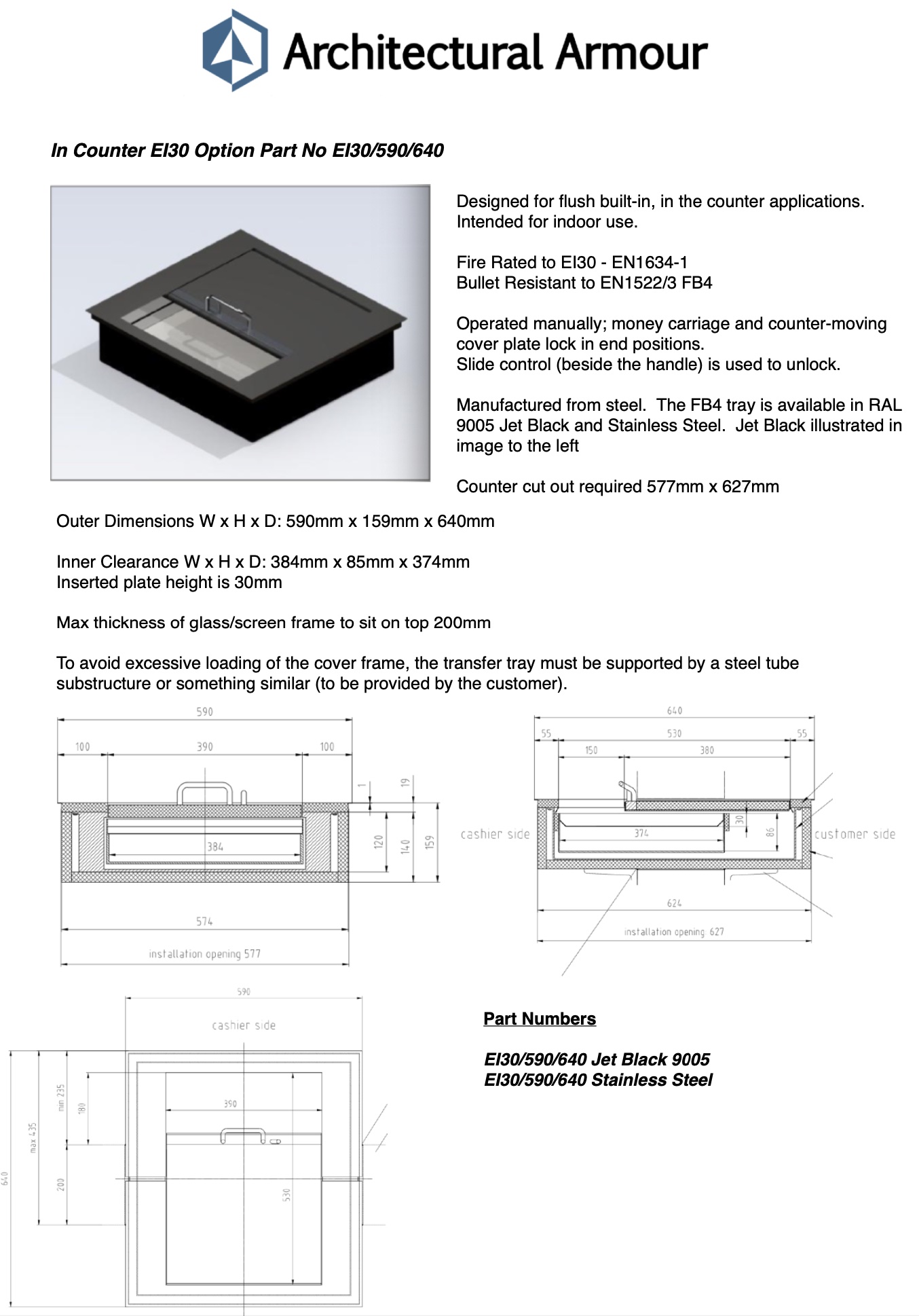

30 Minute Fire Rated Transaction Tray

EI30 FR Tray - Fire Rated Bullet Transaction Tray

To view the PDF of the drawing please click here

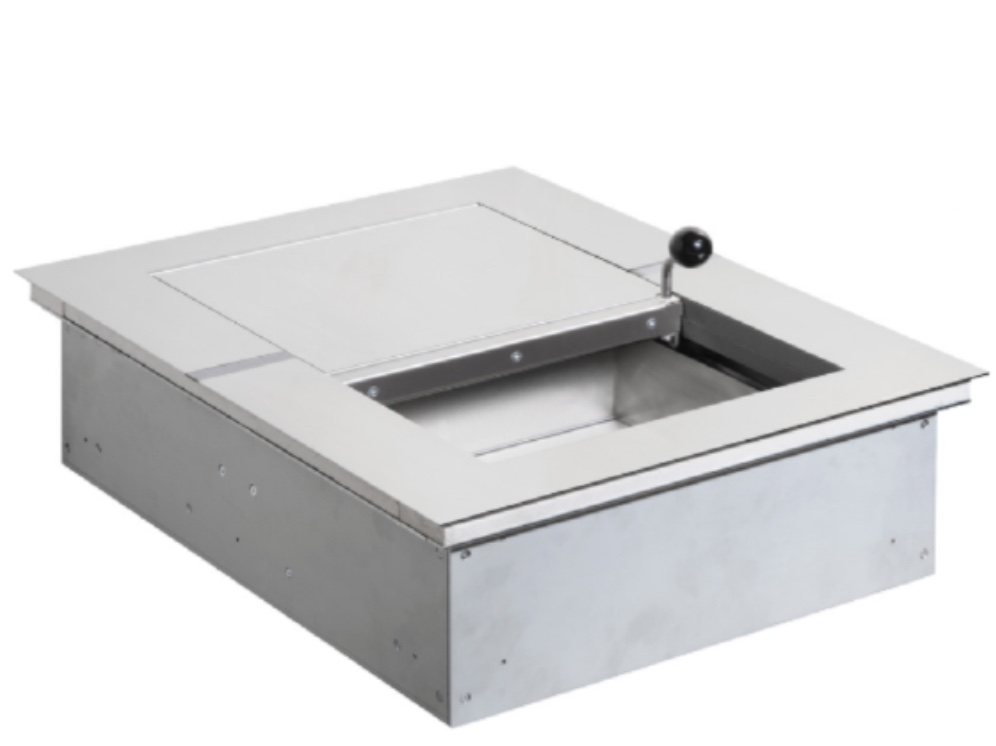

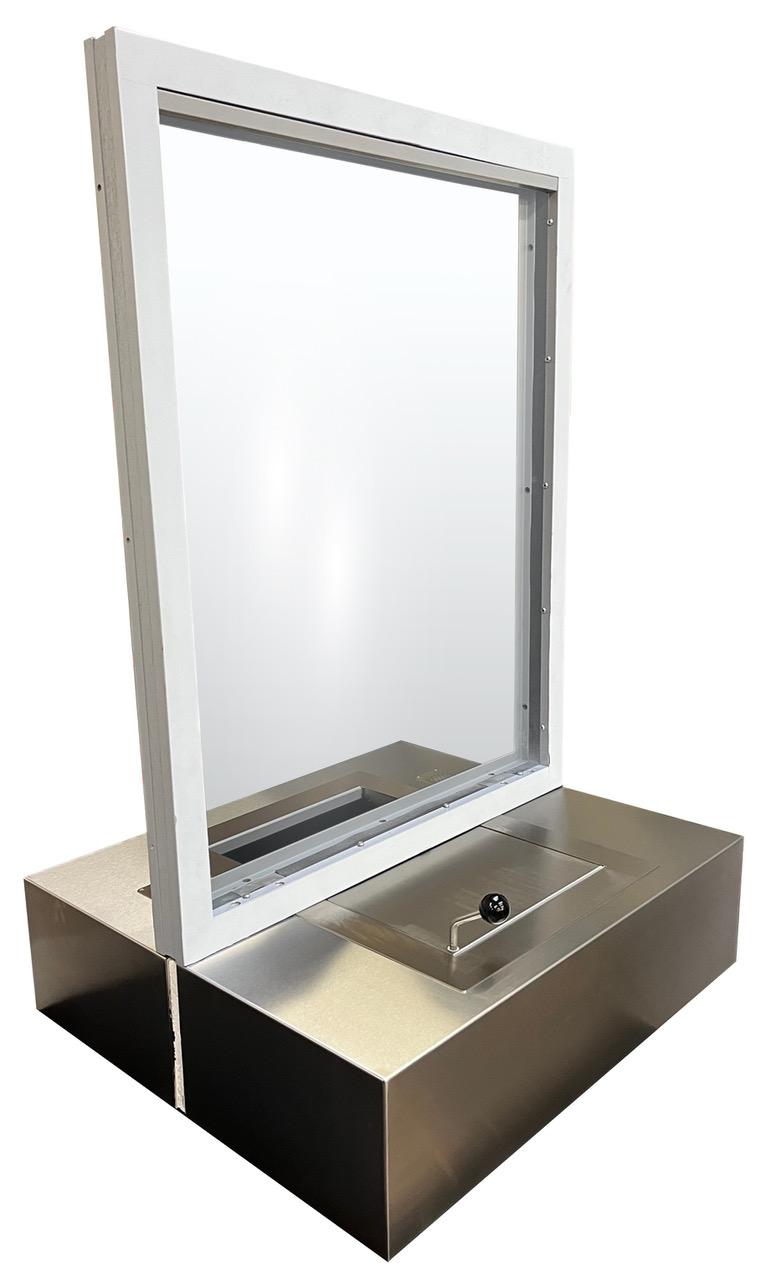

Fire Rated Tray - EI60 In the Counter Transaction Tray

 In Stock - Ready for immediate delivery
  1. Please contact us on +44(0) 1981 257000 or mailto:info@architecturalarmour.com to discuss your project in more detail.

 Designed for flush built-in, in the counter applications. Intended for indoor use.

Fire Rated to EI60 - EN1634-1 Bullet Resistant to EN1522/3 FB4

Operated manually; automatic lock at full extension on either side. Lock can only be released on staff side by using lever.
After releasing the lever tray runs automatically (spring operated) into a locked end position

Manufactured from steel. Stainless Steel Finish.

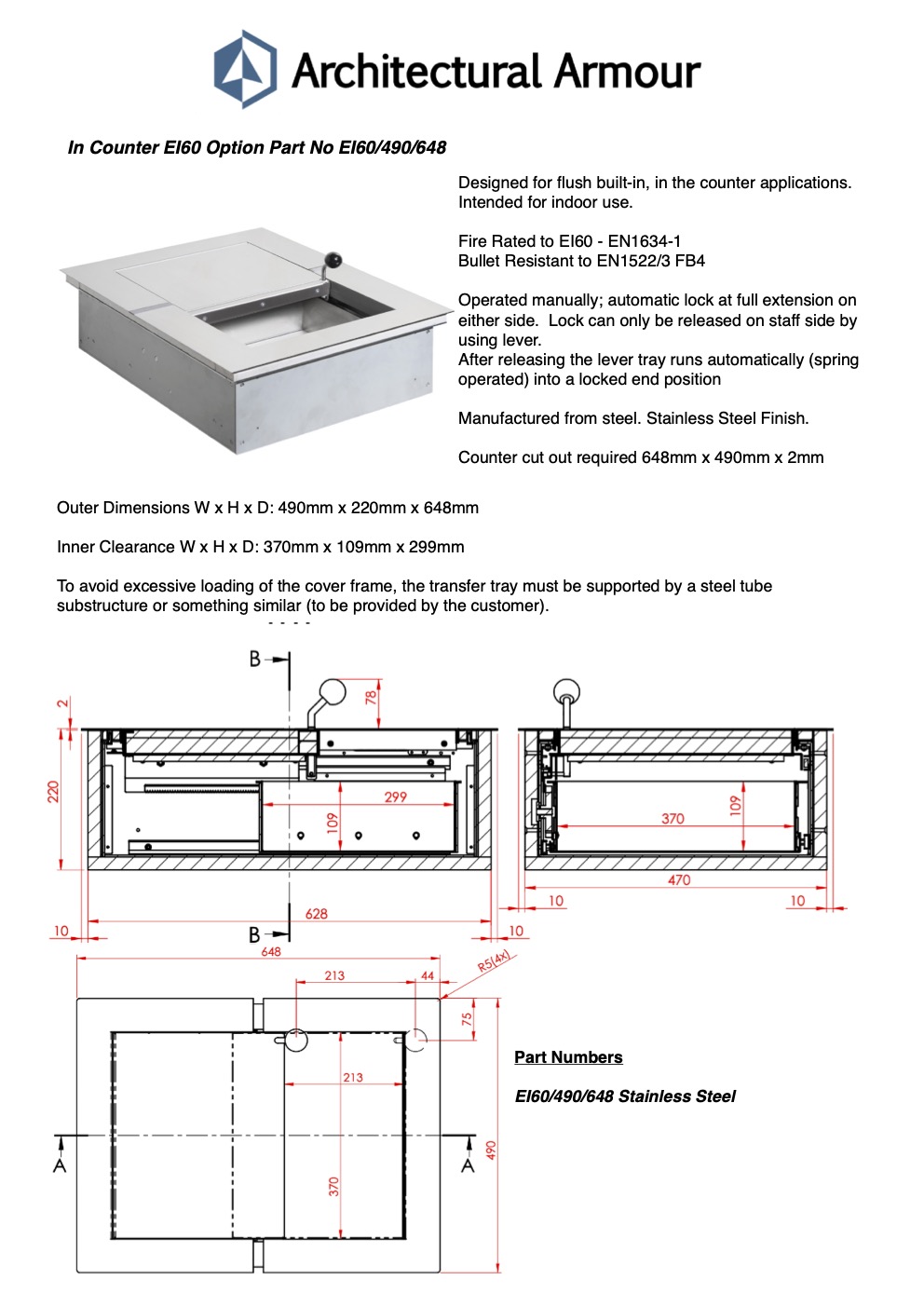

Outer Dimensions W x H x D: 490mm x 220mm x 648mm

Inner Clearance W x H x D: 370mm x 109mm x 299mm

To avoid excessive loading of the cover frame, the transfer tray must be supported by a steel tube substructure or something similar (to be provided by the customer).

Part Numbers

 EI60/490/648 Stainless Steel



EI60 FR Transaction Tray 60 Minutes Fire Rated

EI60 Transaction Tray 60 minutes fire rating 60 minutes integrity insulation fire rated tray

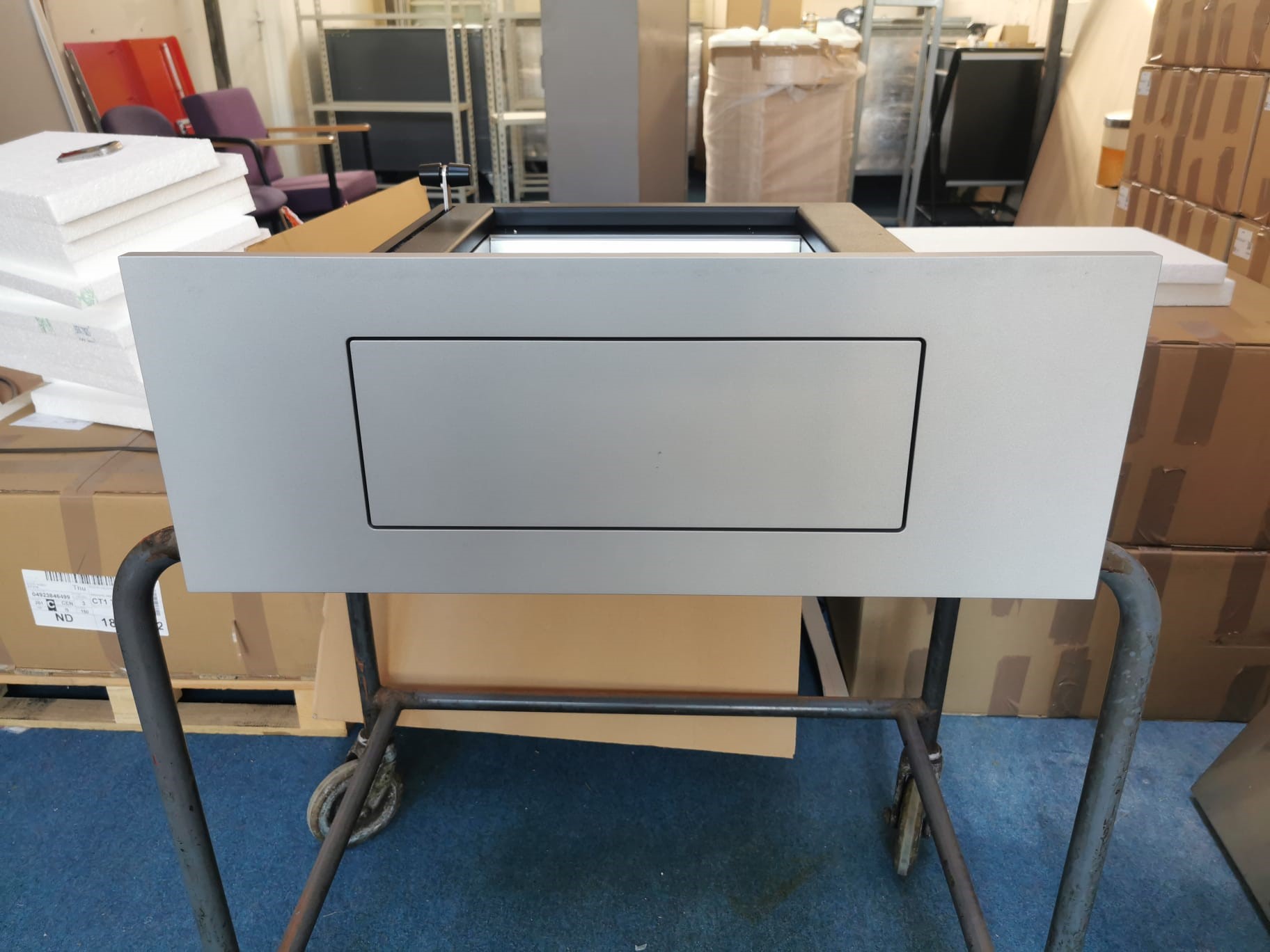

Fire Rated Tray - EI90 Front Opening Transaction Drawer

 In Stock - Ready for immediate delivery
  1. Please contact us on +44(0) 1981 257000 or mailto:info@architecturalarmour.com to discuss your project in more detail.

We have 2 options on the front opening transaction tray designed to offer a  flush, built-in finish to a counter/screen.  Built into the front or within a partition wall.  Suitable for indoor uses.  The 2 trays allow for installation into wall thicknesses up to either 175mm or 330mm.

Please specify your wall thickness when contacting our sales offer for a quotation.

Operated manually, the tray and inner cover plate are interlocked guaranteeing bullet resistance and preventing unauthorized infiltration and draughts.  Manufactured from solid lacquered steel.  The front cover, inner cover as well as draught slide are lacquered in RAL 9006 (white aluminium) as standard.

The tray suitable for wall thicknesses up to 330mm is also available in bullet resistant models, ranging from EN1522/3 FB4 to EN1522/3 FB7 in addition to the fire rated element.

EI90 Front Opening Tray - Suitable for wall thicknesses up to 175mm

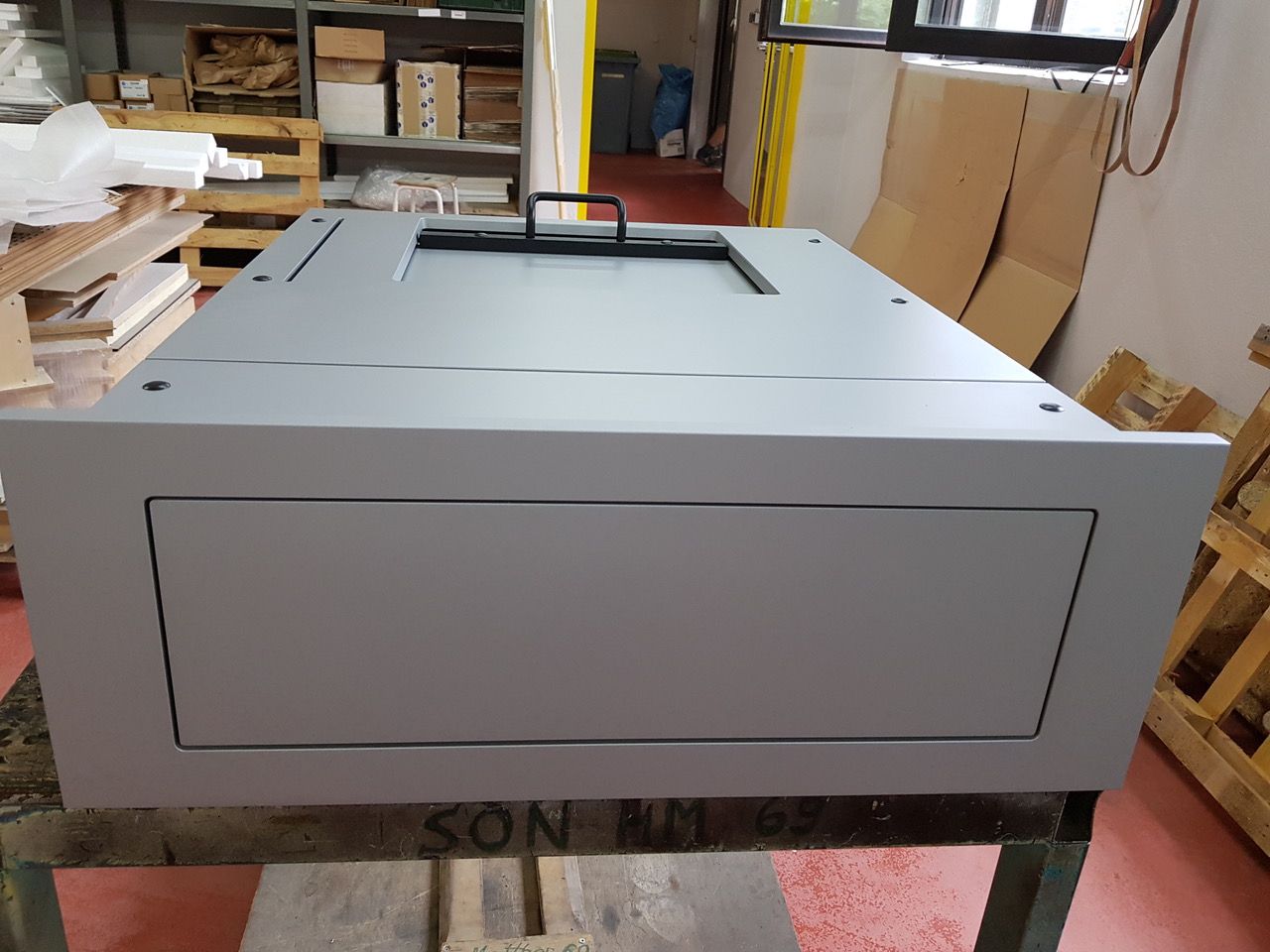

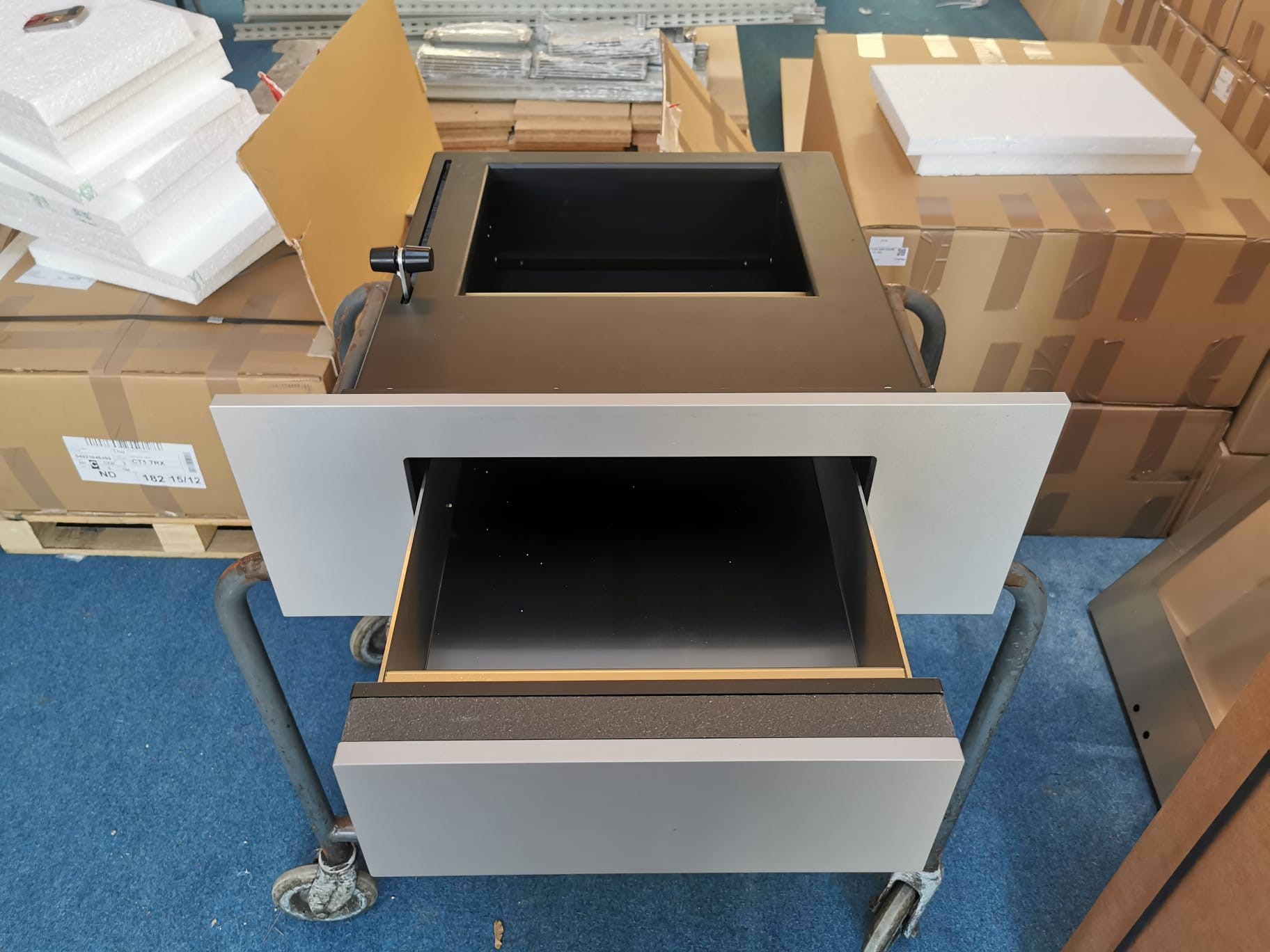

 EI90 Front Opening Drawer Tray Counter

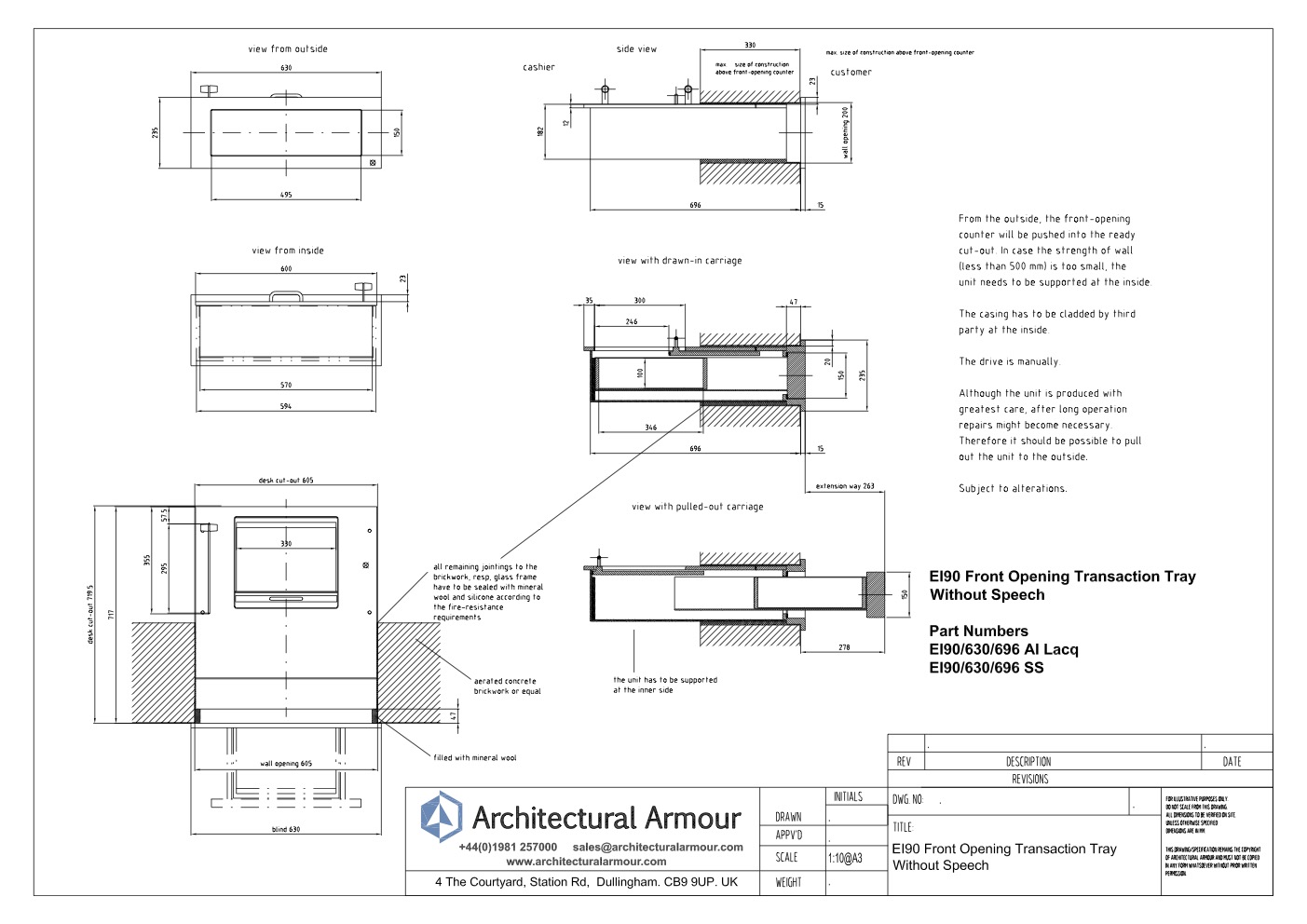

EI90 Front Opening Tray - Suitable for wall thicknesses up to 330mm

EI90 Security Badge Drawer Fire Rated 90 minutes

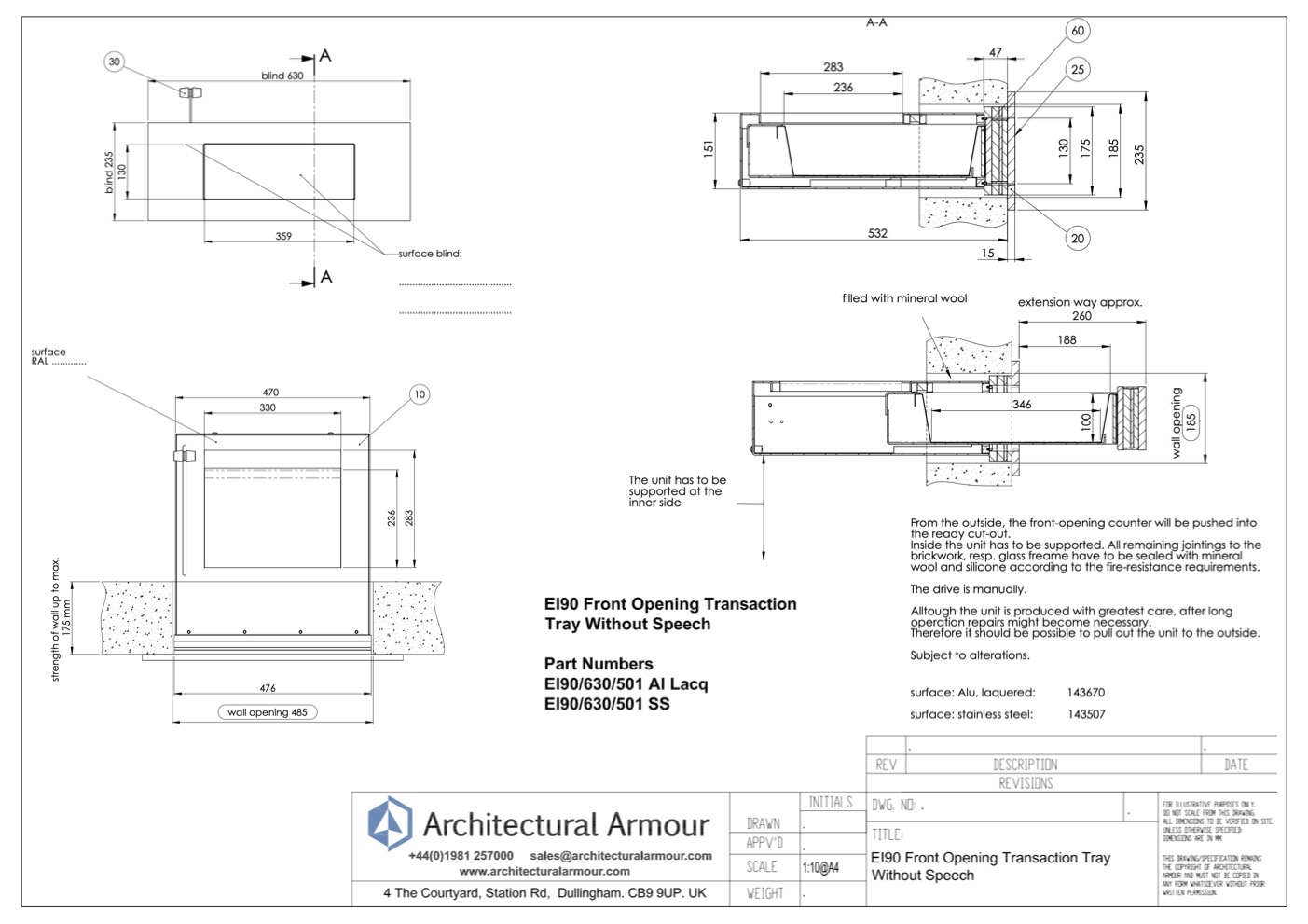

EI90 630/696 Transaction Drawer EI90 630/501 EI90 Transaction Drawer - 175mm Walls



EI90 Fire Rated Transaction Tray

Fire Rated Transaction Window In The Counter TrayFront Opening EI90 Tray Fire Rated
