Bullet Resistant Transaction Window

Architectural Armour manufacture and stock a bullet resistant transaction window for use in circumstances where there is a ballistic threat.  Manufactured from brushed stainless steel over a ballistic steel base this window is suitable for both internal and external applications.  As the window has no open apertures for a direct speech it has an integral duplex audio system, attack face has speakers and mics housed in the mullions whilst the staff side has a non fixed console.

Glazed with BS EN1063 BR4/ SG1 bullet resistant no spall glass which is designed to withstand multiple rounds of the calibre .44 Magnum Handgun or one solid Brenneke slug from a Shot Gun.

The unit is also equipped with a Deep Tray complete with lockable sliding lid allowing you to pass larger items up to 300mm wide.

The Bullet Resistant Security Window can be ordered bespoke and the glazing can be substituted for a physical attack alternative

  • Glazing           BS EN1063 BR4/ SG1 bullet resistant no spall glass
  • Size                   700mm wide x 1100mm high x 520mm deep
  • Frame              Manufactured satin polished stainless steel
  • Trays                Deep Tray, with locking lid
  • Capacity        320mm wide x 130mm deep
  • Speech            Electronic speech transfer

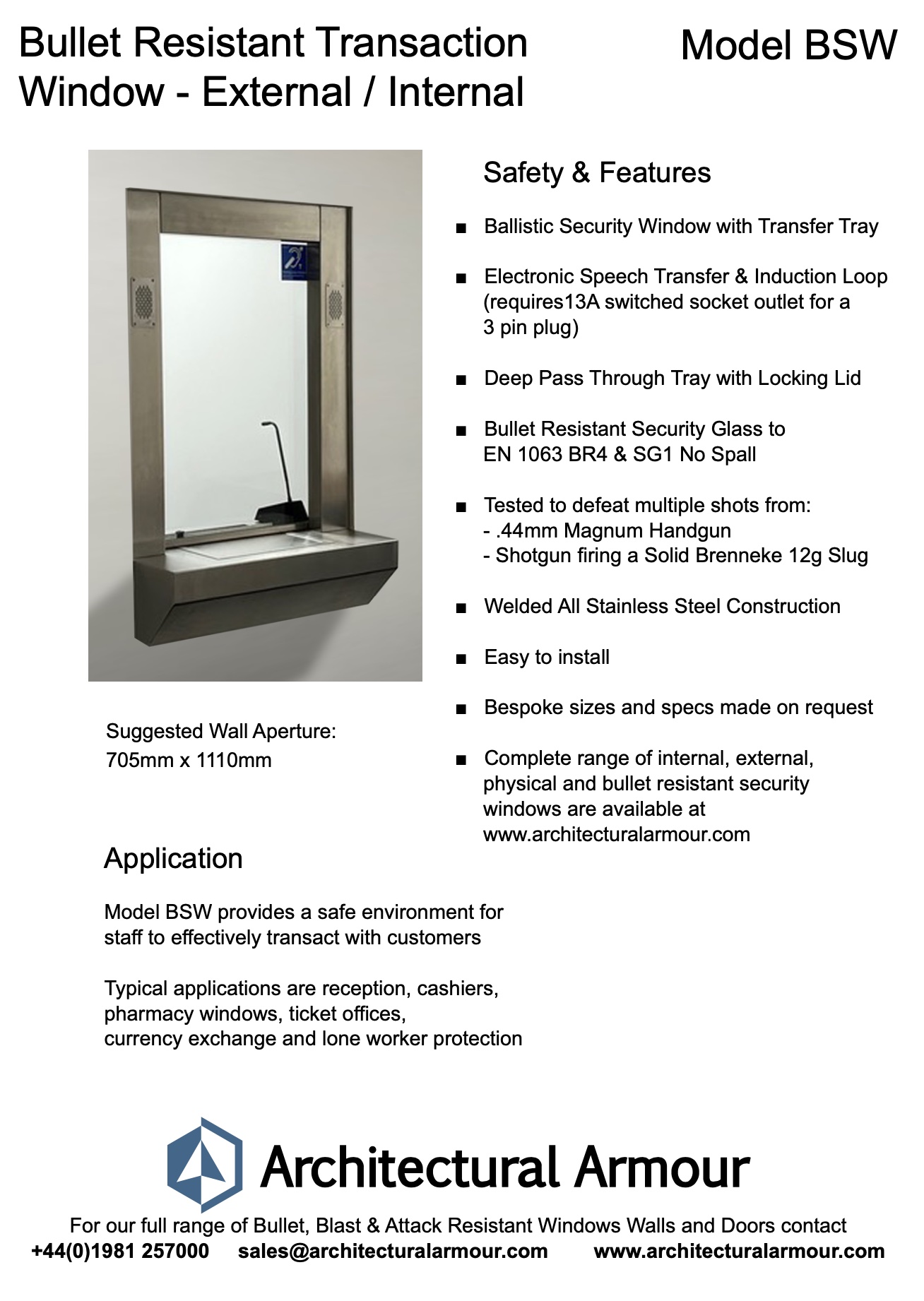

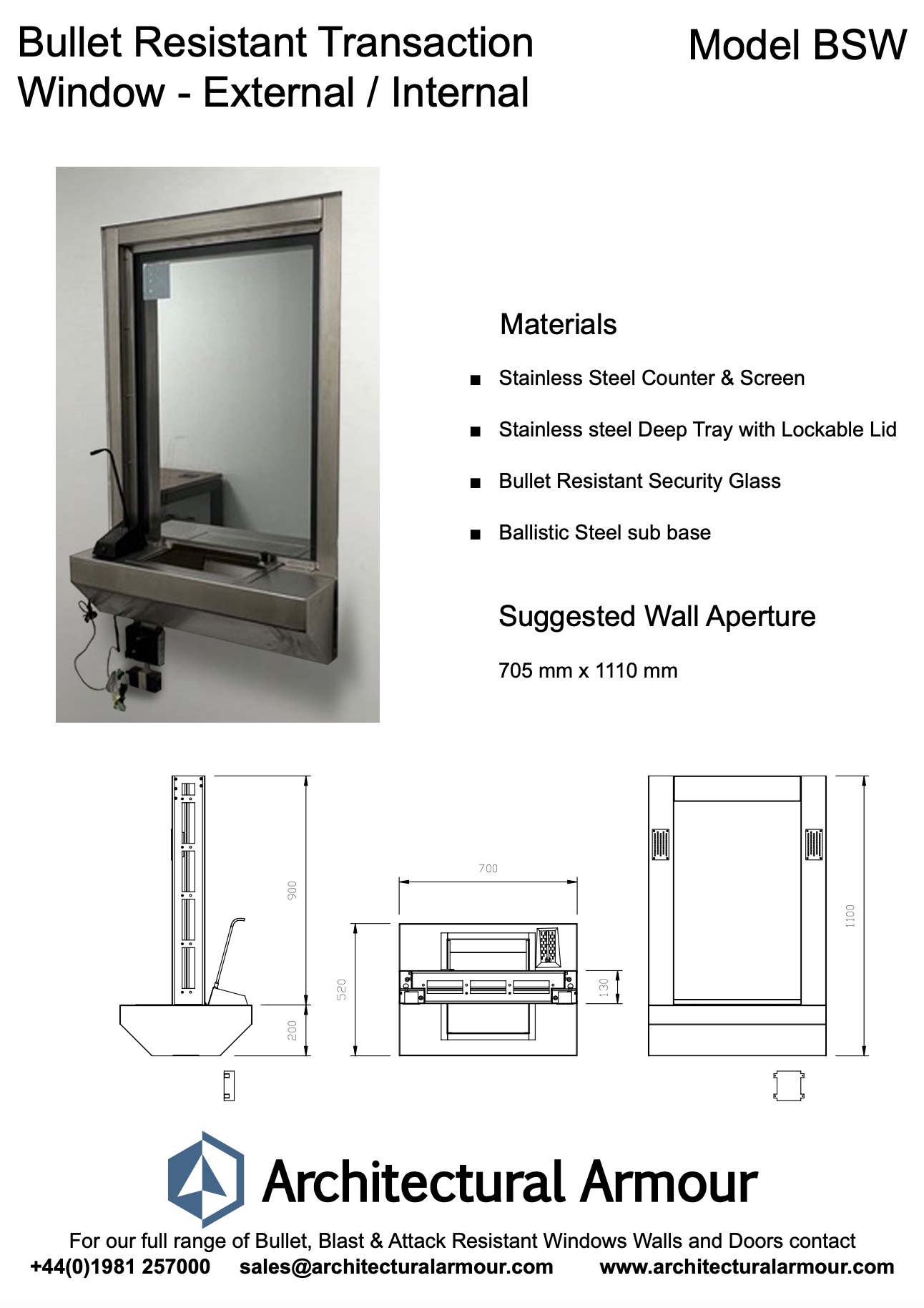

 BSW data sheet

         Bullet Resistant Transaction Window

       Bullet Resistant Transaction Window

Bespoke commissions manufactured to customers requirements.

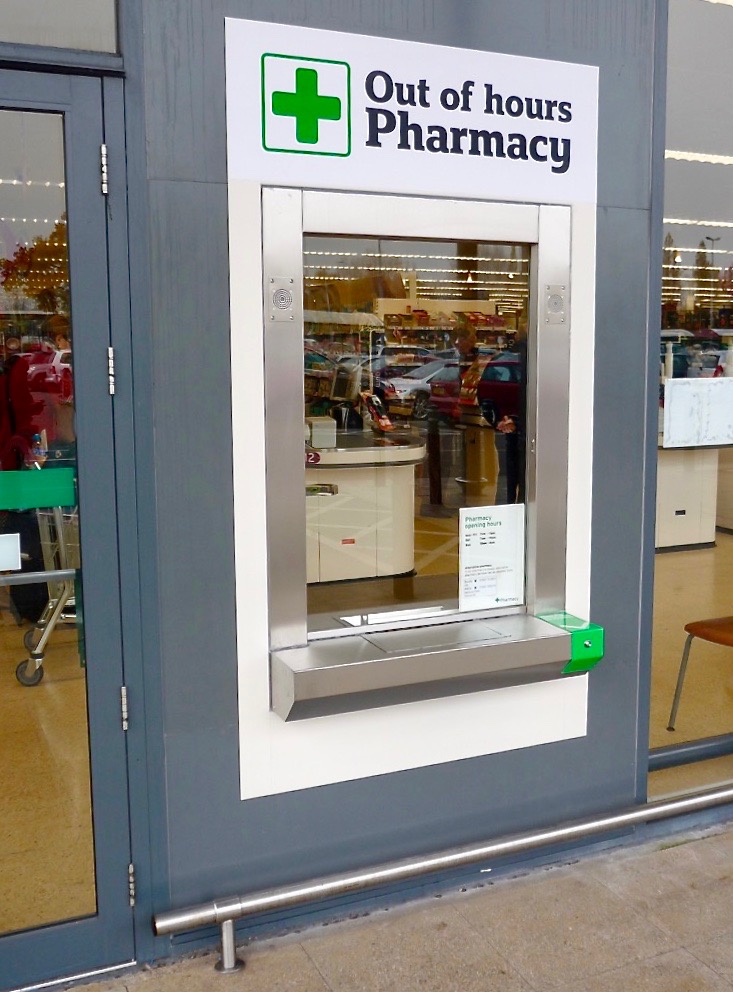

   Pharmacy Transaction Window      Bullet Resistant Transaction Window Screens


Architectural Armour offer a range of bullet resistant products to different standards, please click the relevant link below to find out more;

Other Transaction Windows available are

Attack Resistant Transaction Windows         2 types of versatile Physical Attack Ticket/Cashiers windows with Natural Speech Path for internal use

Night Pay Window / Hatch                                     A flat fronted Transaction Window.  Opening drawer, typical uses Petrol Stations/Pharmacies

BR6 Guard House Transaction Window            BR6 flat fronted Ballistic Window with opening drawer for document transfer.


Other Bullet Resistant/Ballistic Products

Security Counters and Screens                           Physical, Ballistic or Blast Resistant Counters for any application to keep staff secure

Bullet Boards                                                             A selection of ballistic grade walling sheets

Ballistic Vents/Louvres                                         Bespoke products designed to allow passage of air whilst offering bullet and blast protection

Armoured Steel                                                            Ballistic grade steel for incorporation into walls and other security products

Bullet Resistant Windows                              A range of ballistic rated windows manufactured to quality standard ISO 9001.

Bullet Resistant Doors                                    A range of fully tested and certified ballistic single and double doors.

Bullet Resistant Door Viewer                     A full range of bulletproof / Resistant Door Viewers / Peepholes / Spyholes BR4 to BR6

Ballistic and Blast Guard Houses                Modular New Build or Upgrading existing. EN1522/3 FB2 to FB7 , NIJ 0108.01 LII to IV UL 752

Armoured Shipping  Containers                  Converted & Armoured New Containers to provide ballistic refuge in case of attack

Panic Rooms                                                           Modular or Certified wall, Window and Doors

Bullet Resistant Glass                                        Bulletpproof / Resistant Armoured glass to resist from handguns to rifles


Ballistic Technical Specifications

EN 1063               Glass in Building - Security Glazing - Testing and Classification of Resistance Against Bullet Attack

UL 752                   Standard for Bullet-Resisting Equipment

BS 5051                Bullet-resistant glazing - Part 1:  for interior use- Part 2: for Exterior use

NIJ 0108.01      US National Institute of Justice Standard-Test and Certification for Ballistic Resistant Materials

EN 1522/3          Windows, doors, shutters and blinds - Bullet resistance - Requirements and classification /Test method
